766/752

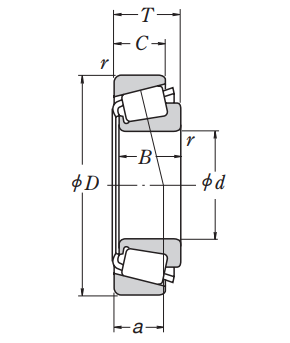

| d | 88.9 | mm | Bore diameter |
| D | 161.925 | mm | Outside diameter |
| T | 47.625 | mm | Total width |
| B | 48.26 | mm | Width of inner ring |
| C | 38.1 | mm | Width of outer ring |
| Cup r (min.) | 3.3 | mm | Chamfer dimension of outer ring (Cup) |
| Cone r (min.) | 7 | mm | Chamfer dimension of inner ring (Cone) |
| Cr | 340000 | N | Basic dynamic load rating |
| C0r | 390000 | N | Basic static load rating |
| Grease | 2200 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 3000 | min-1 | Oil-bath lubrication |

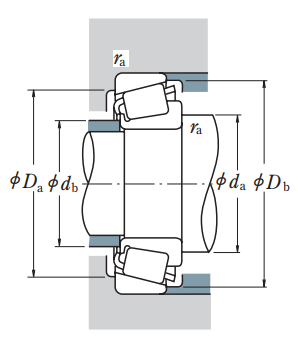

| da | 113 | mm | Diameter of shaft abutment |
| Da | 144 | mm | Diameter of housing abutment |
| db | 99 | mm | Diameter of shaft abutment |
| Db | 150 | mm | Diameter of housing abutment |
| ra (max.) | 7 | mm | Radius of shaft or housing fillet of inner ring |
| ra (max.) | 3.3 | mm | Radius of shaft or housing fillet of outer ring |
| e | 0.34 | Constant | |
| Y0 | 0.97 | Axial load Factors | |
| Y1 | 1.8 | Axial load Factors |
| CONE (approx.) | 2.45 | kg | |
| CUP (approx.) | 1.61 | kg |
