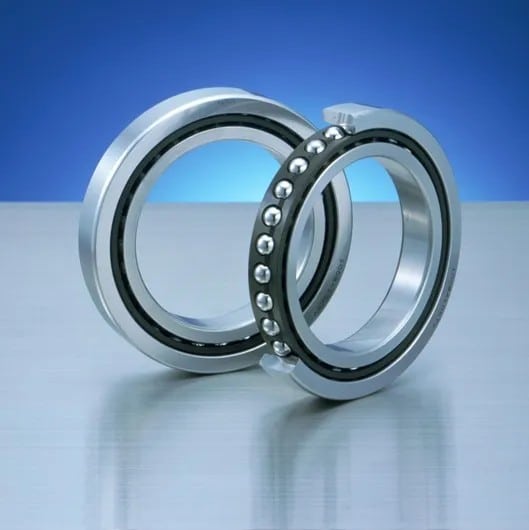

90BTR10E
| BTR: 40° | Bearing Type | ||
| d | 90 | mm | Bore diameter |
| D | 140 | mm | Outside diameter |
| 2B | 45 | mm | Assembled Width |
| r(min.) | 1.5 | mm | Chamfer Dimension |
| r1(min.) | 1 | mm | Chamfer Dimension |
| Ca | 50.0 | kN | Basic Dynamic Load Rating |
| C0a | 105 | kN | Basic Static Load Rating |
| Grease | 6100 | min-1 | Limiting Speed (EL-Preload) |
| Oil (Oil-air) | 8000 | min-1 | Limiting Speed (EL-Preload) |
| Grease | 5200 | min-1 | Limiting Speed (L-Preload) |
| Oil (Oil-air) | 6800 | min-1 | Limiting Speed (L-Preload) |
| da(min.) | 99 | mm | Diameter of Shaft Abutment |
| Db(max.) | 134 | mm | Diameter of Housing Abutment |
| ra(max.) | 1.5 | mm | Radius of Shaft or Housing Fillet |
| rb(max.) | 0.8 | mm | Radius of Shaft or Housing Fillet |
Performance
| Pa | 58.0 | kN | Permissible Axial Load |
Preload,Rigidity(DB and DF arrangement)
| Preload | Axial Rigidity | Measured axial clearance | |
| EL | 532N | 433N/μm | -5μm |
| L | 2834N | 768N/μm | -20μm |
| 1.21 | kg | Mass(approx.) |
