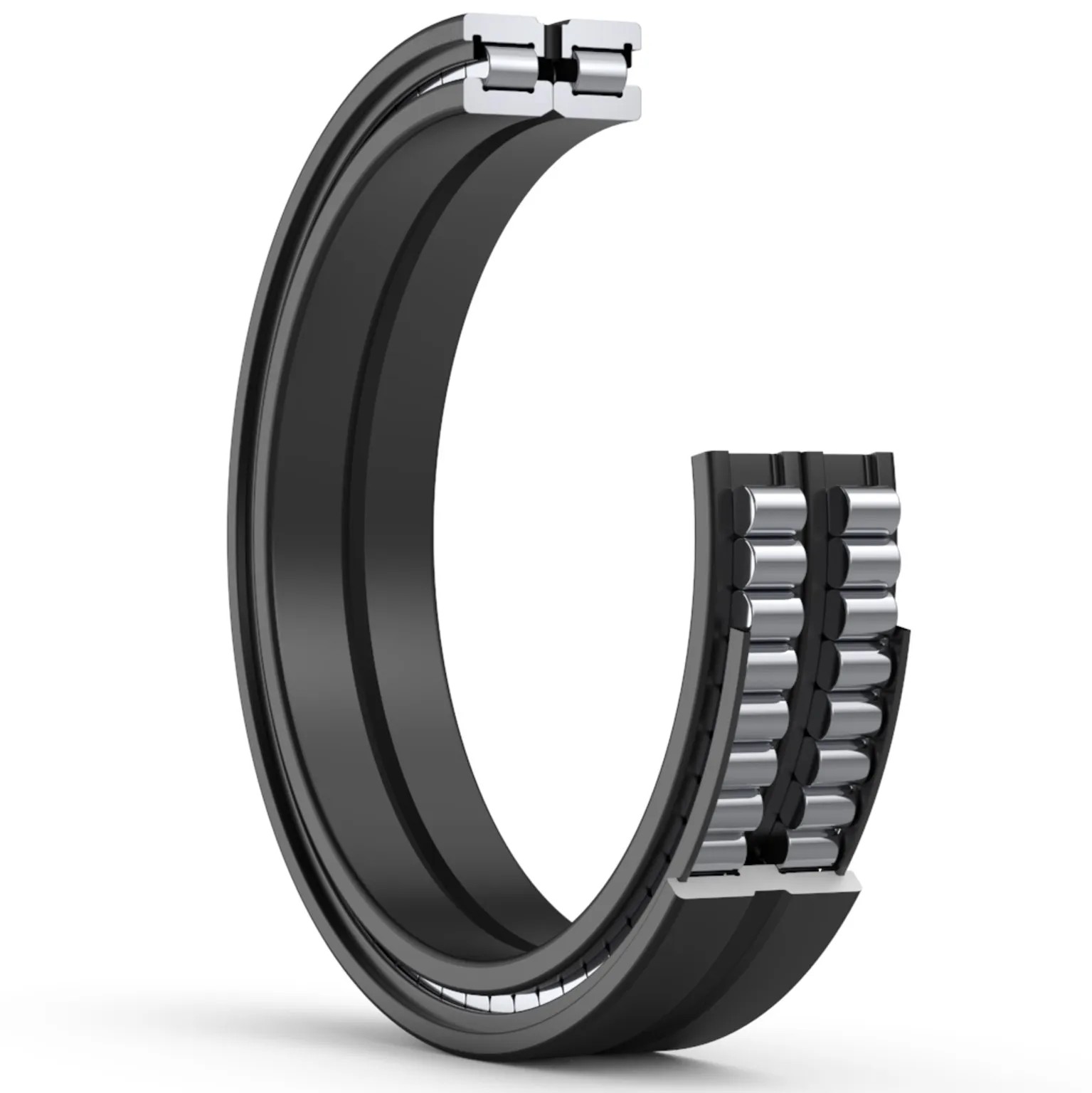

RSF-4824E4

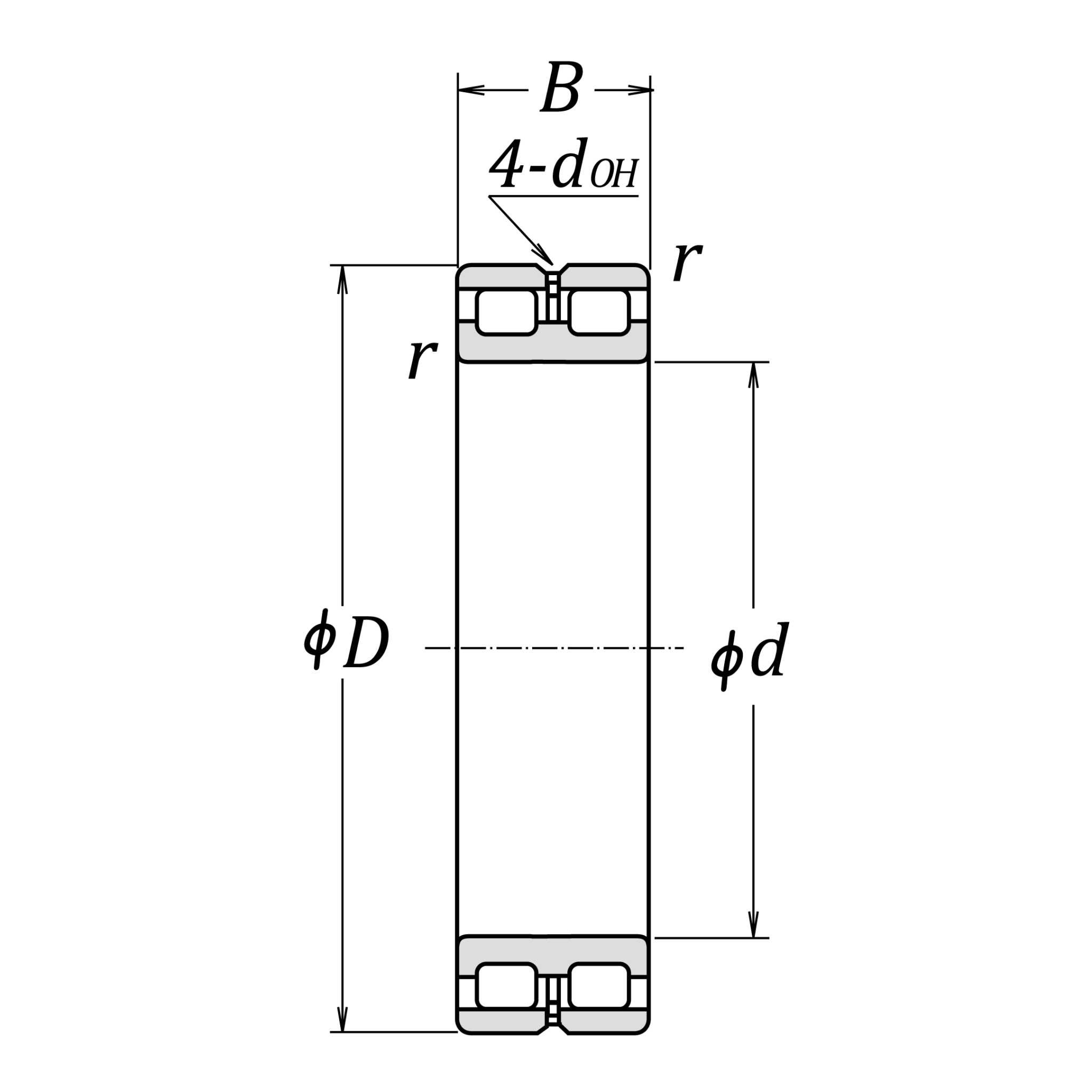

| d | 120 | mm | Bore diameter |
| D | 150 | mm | Outside diameter |
| B | 30 | mm | Width |
| r (min.) | 1 | mm | Chamfer dimension |
| Cr | 147000 | N | Basic dynamic load rating |
| C0r | 283000 | N | Basic static load rating |
| Grease | 900 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 1800 | min-1 | Oil-bath lubrication |

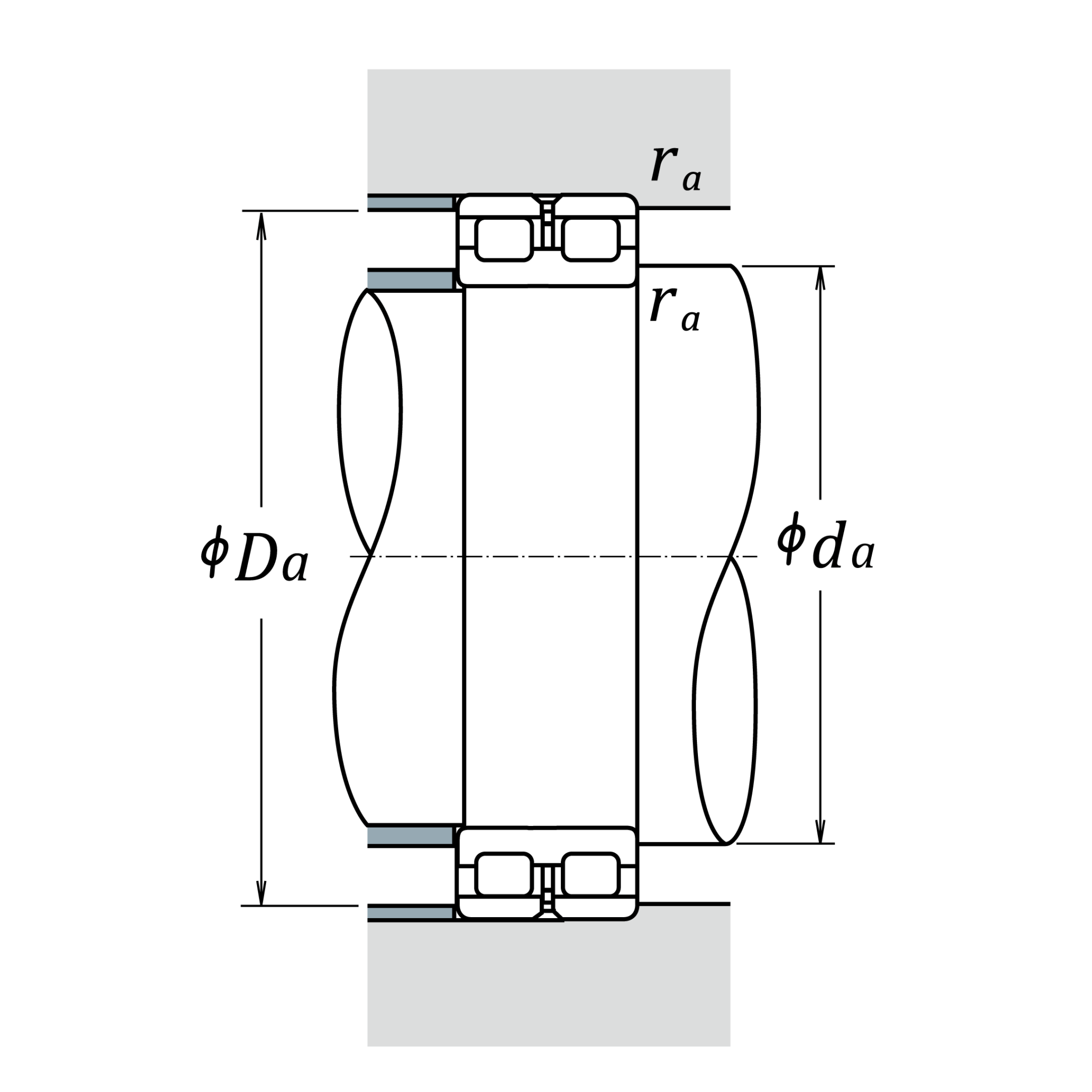

| da (min.) | 125 | mm | Diameter of shaft abutment |
| Da (max.) | 145 | mm | Diameter of housing abutment |
| ra (max.) | 1 | mm | Radius of shaft or housing fillet |
| (approx.) | 1.28 | kg |
