ZM-UKFL206D1
| Cr | 19.5 | kN | Basic dynamic load rating |
| C0r | 11.3 | kN | Basic static load rating |
Included products
| Bearing | UK206D1 | Bearing | |
| Housing | FL206D1 | Housing |
Associated products
| Adapter sleeve | H2306X | Adapter sleeve |

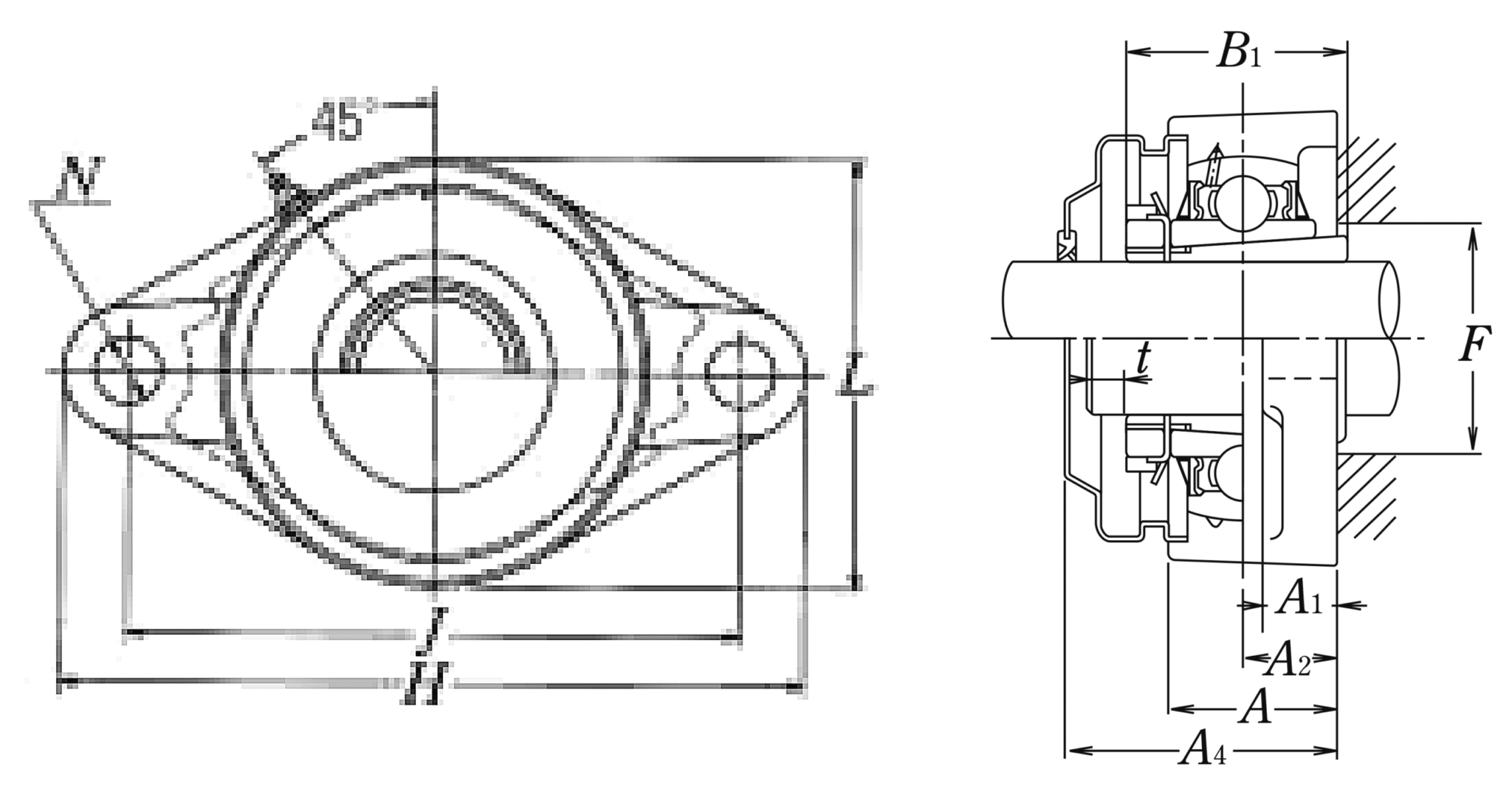

Nominal Dimensions
| d | 25 | mm | Bore diameter |
| L,L1 | 80 | mm | Overall height |
| J | 117 | mm | Distance between attachment bolts |
| N | 18 | mm | Diameter of attachment bolt hole |
| A2 | 18 | mm | Flange width |
| A1 | 13 | mm | Flange width |
| A | 31 | mm | Base width |
| A4 | 45 | mm | Width including end cover |
| B,B1,B2 | 38 | mm | Width of inner ring |
| F | 36 | mm | Diameter of housing abutment |
| t | 2 | mm | Clearance |
| H | 148 | mm | Overall length |
Mounting information
| G | M14 | Bolt size |
| mass | 1 | kg | Mass approx. |
