UCS206LN
| Cr | 19.5 | kN | Capacidad de carga dinámica básica |
| C0r | 11.3 | kN | Capacidad de carga estática básica |
Included products
| Bearing | UCS206LN | Bearing |

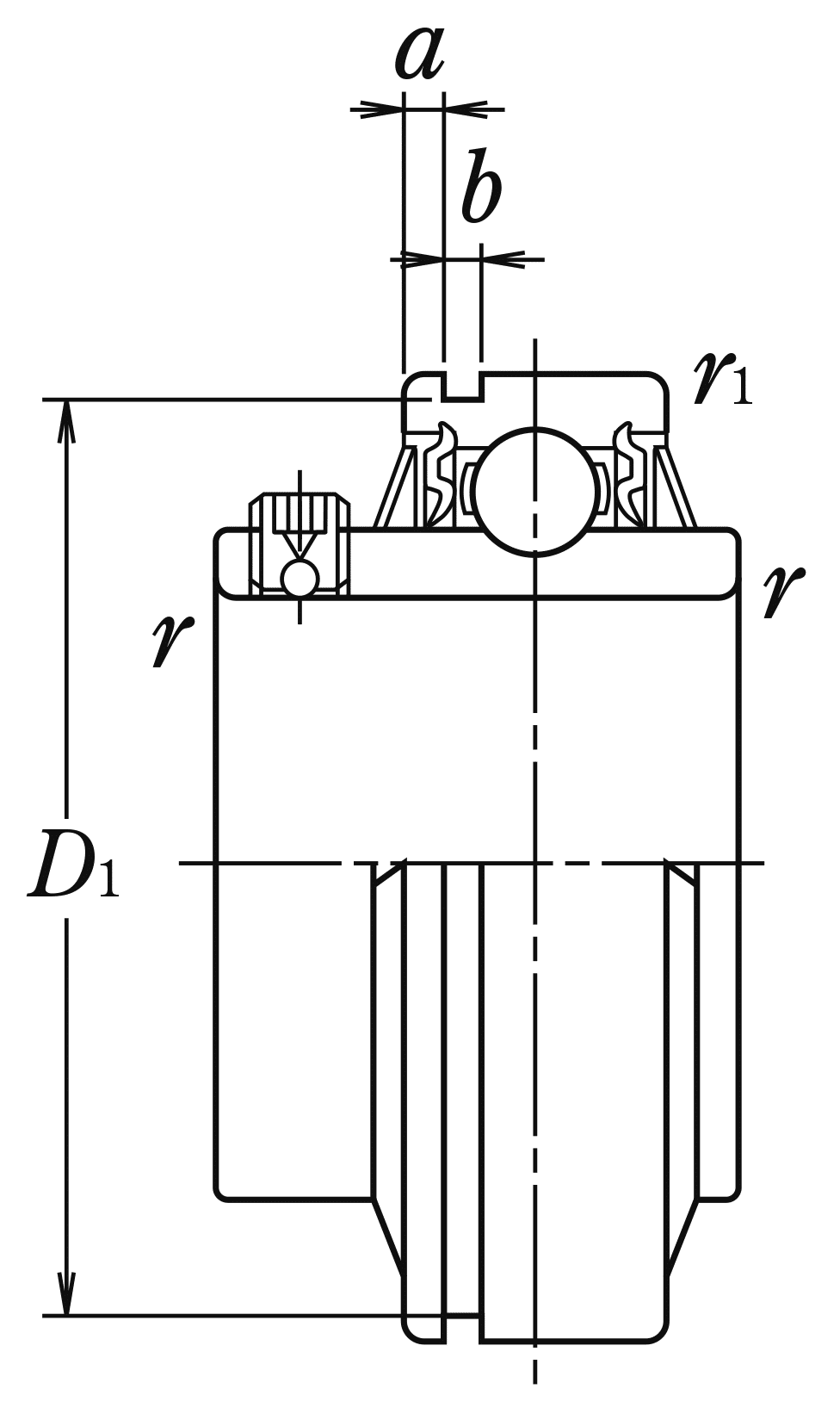

Nominal Dimensions
| d | 30 | mm | Diámetro interior |
| D | 62 | mm | Diámetro exterior |
| B,B4 | 38.1 | mm | Width of inner ring |
| C | 19 | mm | Outer ring width |
| r(min.) | 1 | mm | Dimensión del chaflán |
| r1(min.) | 1 | mm | Dimensión del chaflán |
| S1 | 22.2 | mm | Distance from locking device side face to raceway centre |
| G | 5 | mm | Distance face to thread centre |
| ds | M 6×0.75 | Set screw | |
| d4 | 40.8 | mm | Outside diameter of inner ring |
| D1 | 59.61 | mm | Diameter of snap ring groove |
| a | 3.2 | mm | Distance outer ring from side face to snap ring groove |
| b | 2.05 | mm | Width of snap ring groove |
| Mass approx. | 0.34 | kg | Mass approx. |
