UCPX18D1
| Cr | 109 | kN | Peringkat beban dinamis dasar |
| C0r | 82 | kN | Peringkat beban statis dasar |
Included products
| Bearing | UCX18D1 | Bearing | |
| Housing | PX18D1 | Housing |

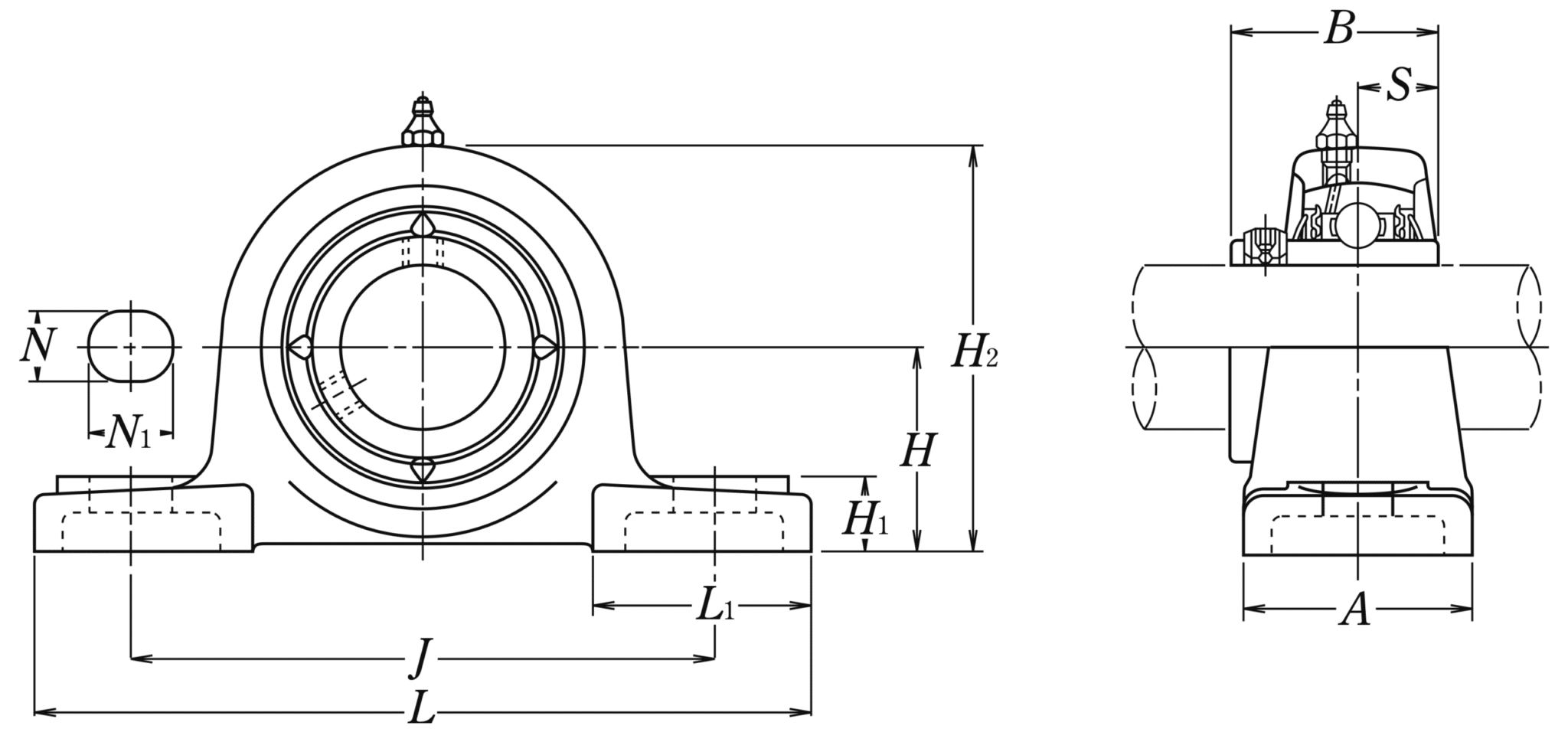

Nominal Dimensions
| d | 90 | mm | Diameter lubang |
| N1 | 30 | mm | Length of attachment bolt hole |
| L | 381 | mm | Overall length |
| H | 101.6 | mm | Height of spherical seat centre |
| J | 283 | mm | Distance between attachment bolts |
| N | 27 | mm | Diameter of attachment bolt hole |
| A | 111 | mm | Base width |
| H1 | 40 | mm | Distance between bottoms of piloting grooves |
| B | 104 | mm | Width of inner ring |
| S | 42.9 | mm | Distance from Opposite side face of locking device to raceway centre |
| L1 | 110 | mm | Foot width |
| H2 | 206 | mm | Overall height |
Mounting information
| G | M22 | Bolt size |
| mass | 16 | kg | Mass approx. |
