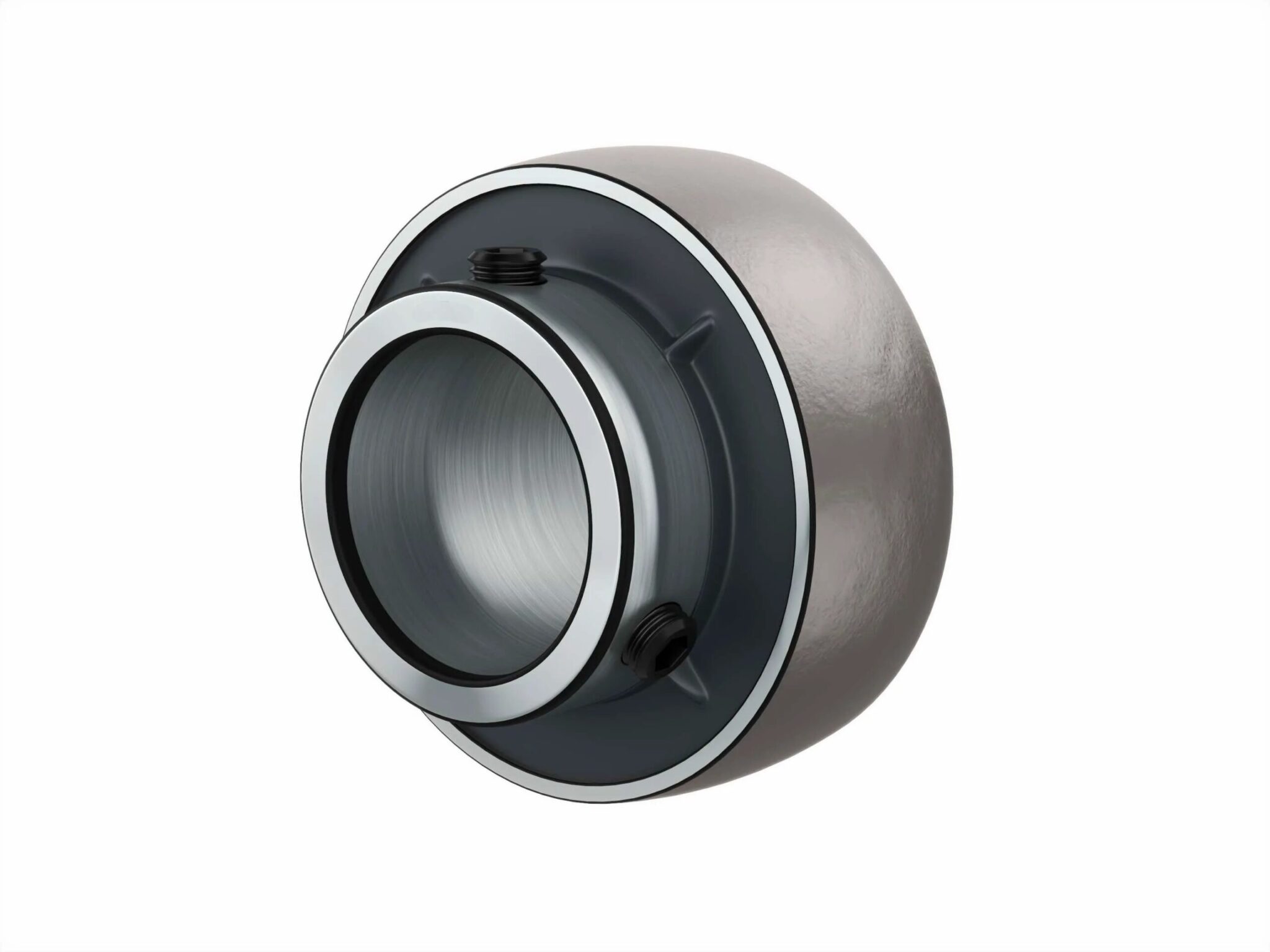

UKS207LN
| Cr | 25.7 | kN | Peringkat beban dinamis dasar |
| C0r | 15.3 | kN | Peringkat beban statis dasar |
Included products
| Bearing | UKS207LN | Bearing |
Associated products
| Adapter sleeve | H2307X | Adapter sleeve |
Nominal Dimensions
| d | 35 | mm | Diameter lubang |
| D | 72 | mm | Diameter luar |
| B1 | 43 | mm | Overall bearing width |
| d1 | 30 | mm | Sleeve bore diameter |
| d2 | 52 | mm | Outside diameter lock nut |
| B,B4 | 29 | mm | Width of inner ring |
| B2 | 9 | mm | Width lock nut including lock washer |
| C | 20 | mm | Outer ring width |
| r(min.) | 1.5 | mm | Dimensi talang |
| d4 | 46.8 | mm | Outside diameter of inner ring |
| D1 | 68.81 | mm | Diameter of snap ring groove |
| a | 3.3 | mm | Distance outer ring from side face to snap ring groove |
| b | 2.05 | mm | Width of snap ring groove |
| Mass approx. | 0.57 | kg | Mass approx. |
