NNU4996K

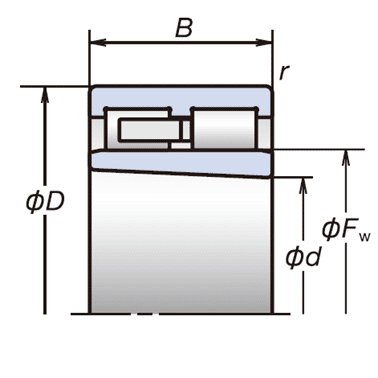

| NNU: Outer ring rib type | Bearing Type | ||
| d | 480 | mm | Diametro del foro |
| D | 650 | mm | Diametro esterno |
| B | 170 | mm | Larghezza |
| r(min.) | 5 | mm | Chamfer Dimension |
| Cr | 2690 | kN | Basic Dynamic Load Rating |
| C0r | 7000 | kN | Basic Static Load Rating |
| Grasso | 1000 | min-1 | Limiting Speed |
| Oil (Oil-air) | 1300 | min-1 | Limiting Speed |
| da(min.) | 500 | mm | Diameter of Shaft Abutment |
| d1a(min.) | 514 | mm | Diameter of Shaft Abutment |
| Da(max.) | 630 | mm | Diameter of Housing Abutment |
| ra(max.) | 4 | mm | Radius of Shaft or Housing Fillet |
| 150 | kg | Mass(approx.) |
