UCIP212D1
| Cr | 52.5 | kN | Valutazione del carico dinamico di base |
| C0r | 36 | kN | Valutazione del carico statico di base |
Included products
| Bearing | UC212D1 | Bearing | |
| Housing | IP212D1 | Housing |

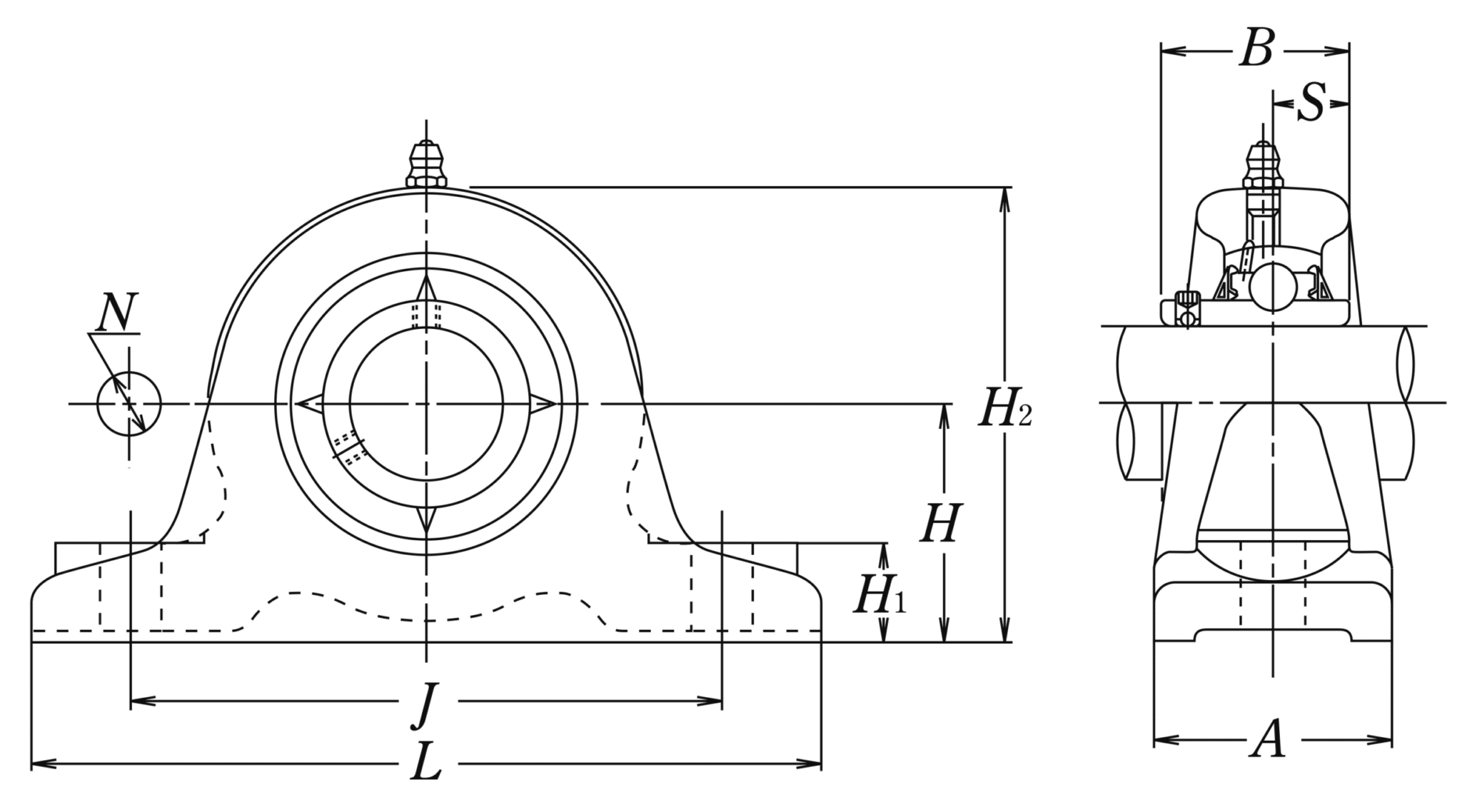

Nominal Dimensions
| d | 60 | mm | Diametro del foro |
| L | 260 | mm | Overall length |
| H | 80 | mm | Height of spherical seat centre |
| J | 200 | mm | Distance between attachment bolts |
| N | 22 | mm | Diameter of attachment bolt hole |
| A | 70 | mm | Base width |
| H1 | 30 | mm | Distance between bottoms of piloting grooves |
| B | 65.1 | mm | Width of inner ring |
| S | 25.4 | mm | Distance from Opposite side face of locking device to raceway centre |
| H2 | 155 | mm | Overall height |
Mounting information
| G | M20 | Bolt size |
| mass | 6.6 | kg | Mass approx. |
