100TMP93

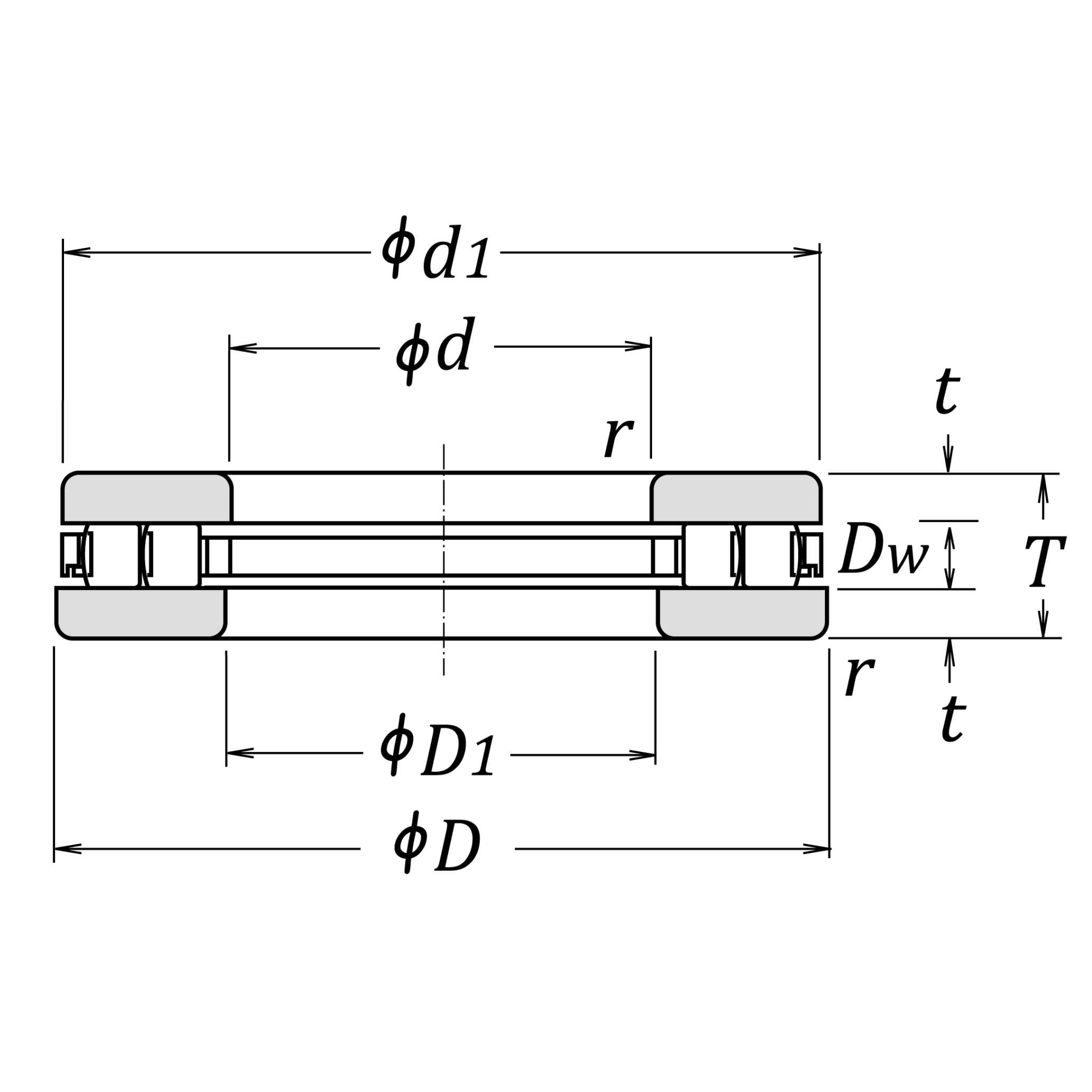

| d | 100 | mm | Bore diameter |
| D | 170 | mm | Outside diameter |
| T,T3 | 42 | mm | Height |
| r (min.) | 1.5 | mm | Chamfer dimension |
| Ca | 292000 | N | Basic dynamic load rating |
| C0a | 1110000 | N | Basic static load rating |
| Grease | 560 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 1700 | min-1 | Oil-bath lubrication |

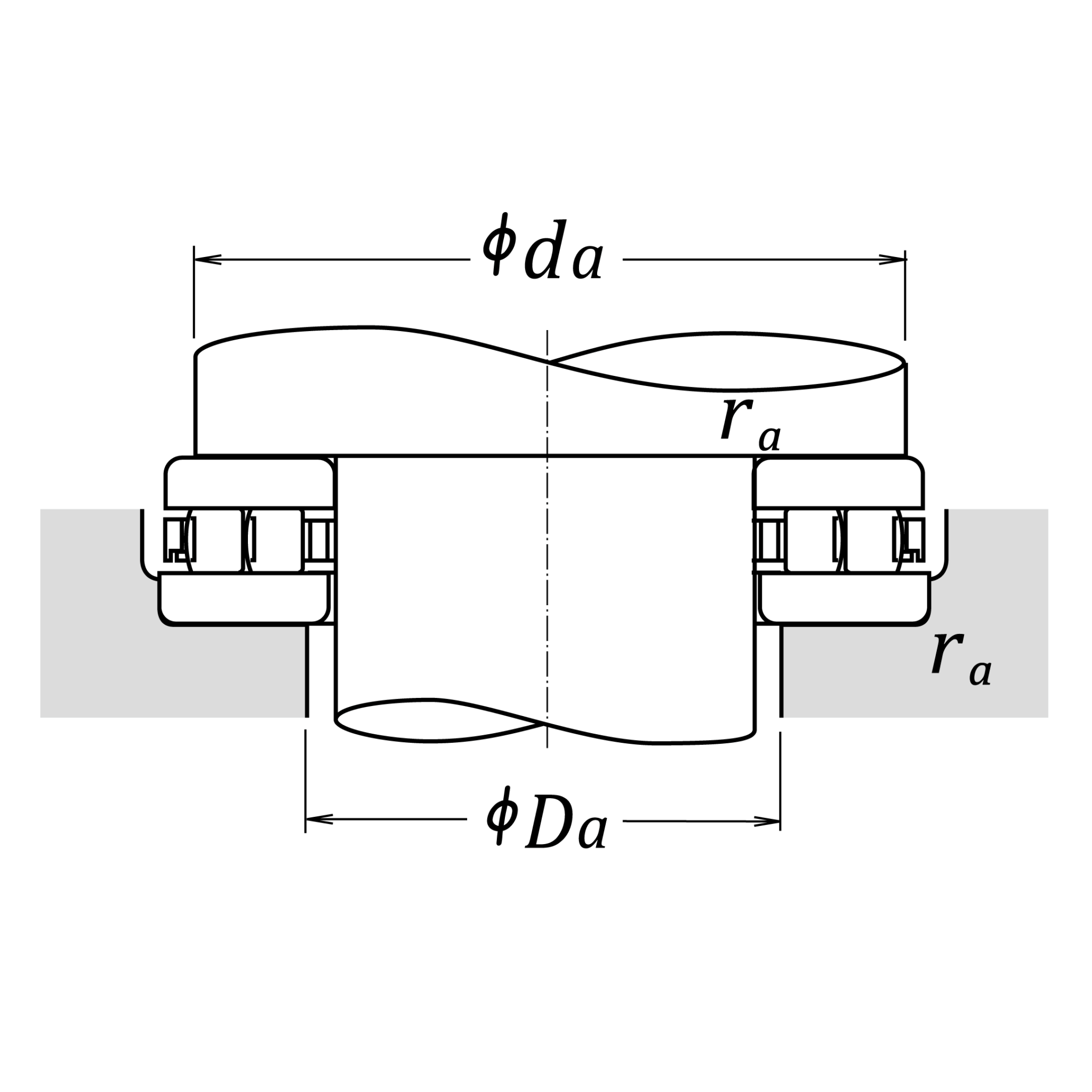

| da (min.) | 159 | mm | Diameter of shaft abutment |
| Da (max.) | 110 | mm | Diameter of housing abutment |
| ra (max.) | 1.5 | mm | Radius of shaft or housing fillet |
| (approx.) | 4.25 | kg |
