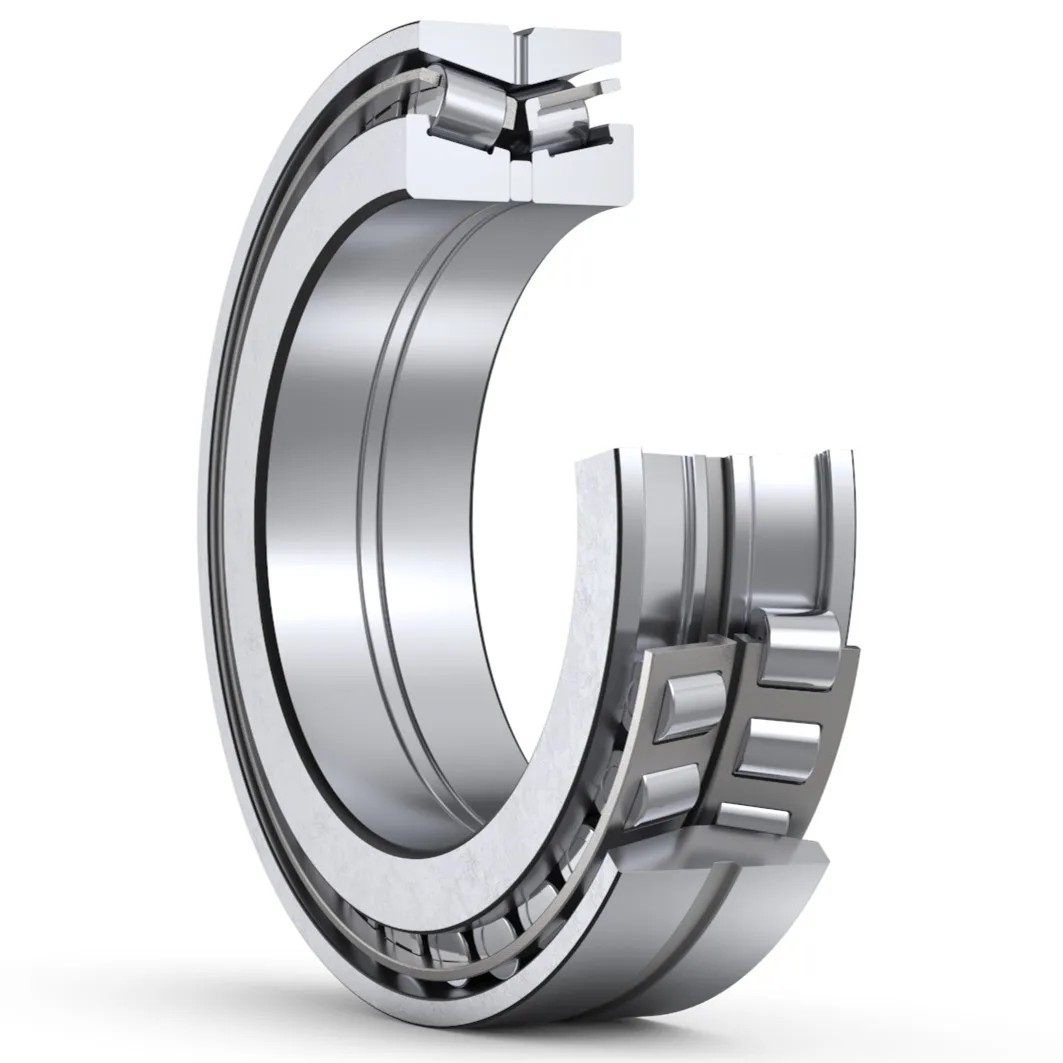

105KBE52+L

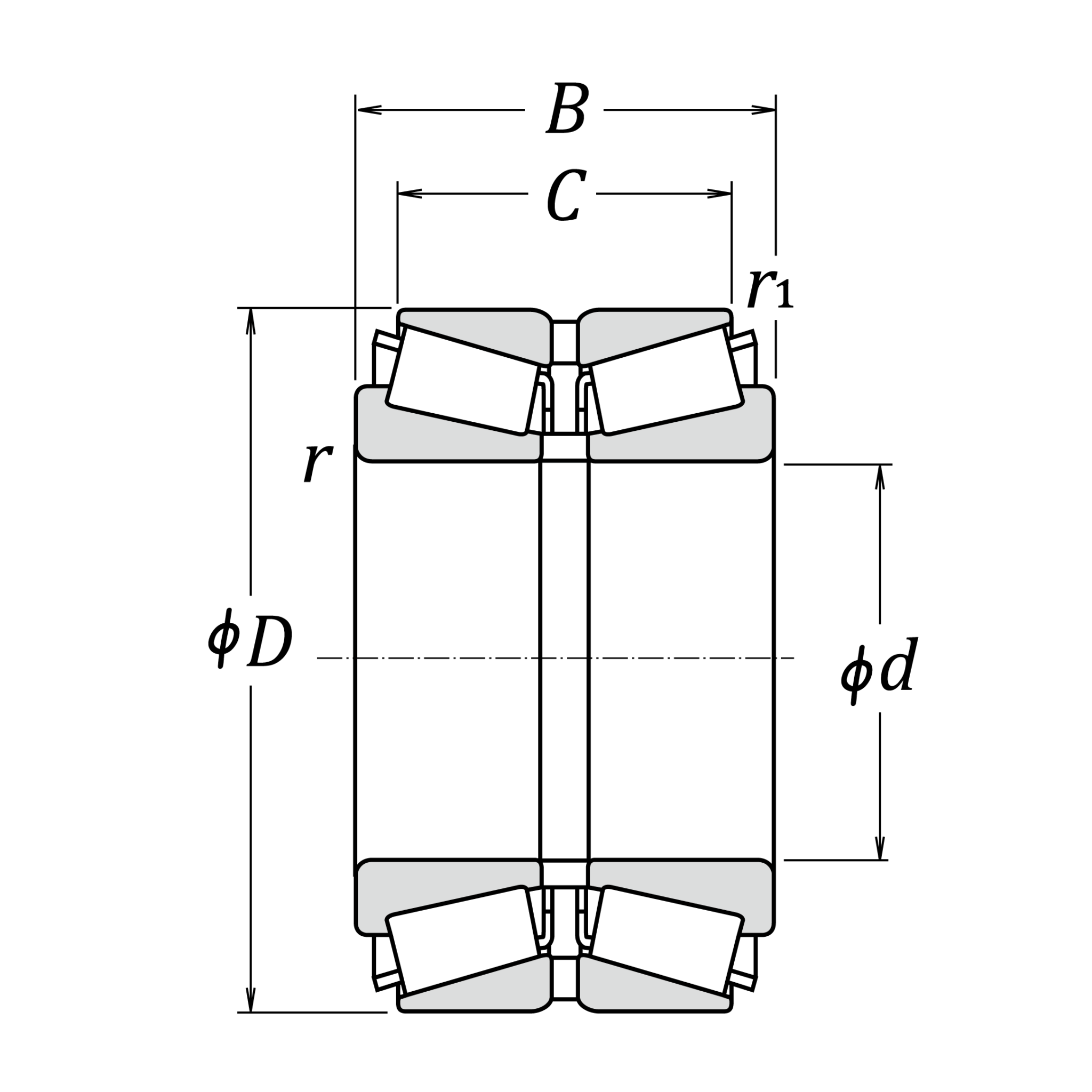

| d | 105 | mm | Bore diameter |
| D | 190 | mm | Outside diameter |
| B2 | 115 | mm | Total width |
| C | 95 | mm | Width of outer ring |
| r (min.) | 3 | mm | Chamfer dimension |
| r1 (min.) | 1 | mm | Chamfer dimension |
| Cr | 710000 | N | Basic dynamic load rating |
| C0r | 920000 | N | Basic static load rating |
| Grease | 1500 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 2000 | min-1 | Oil-bath lubrication |

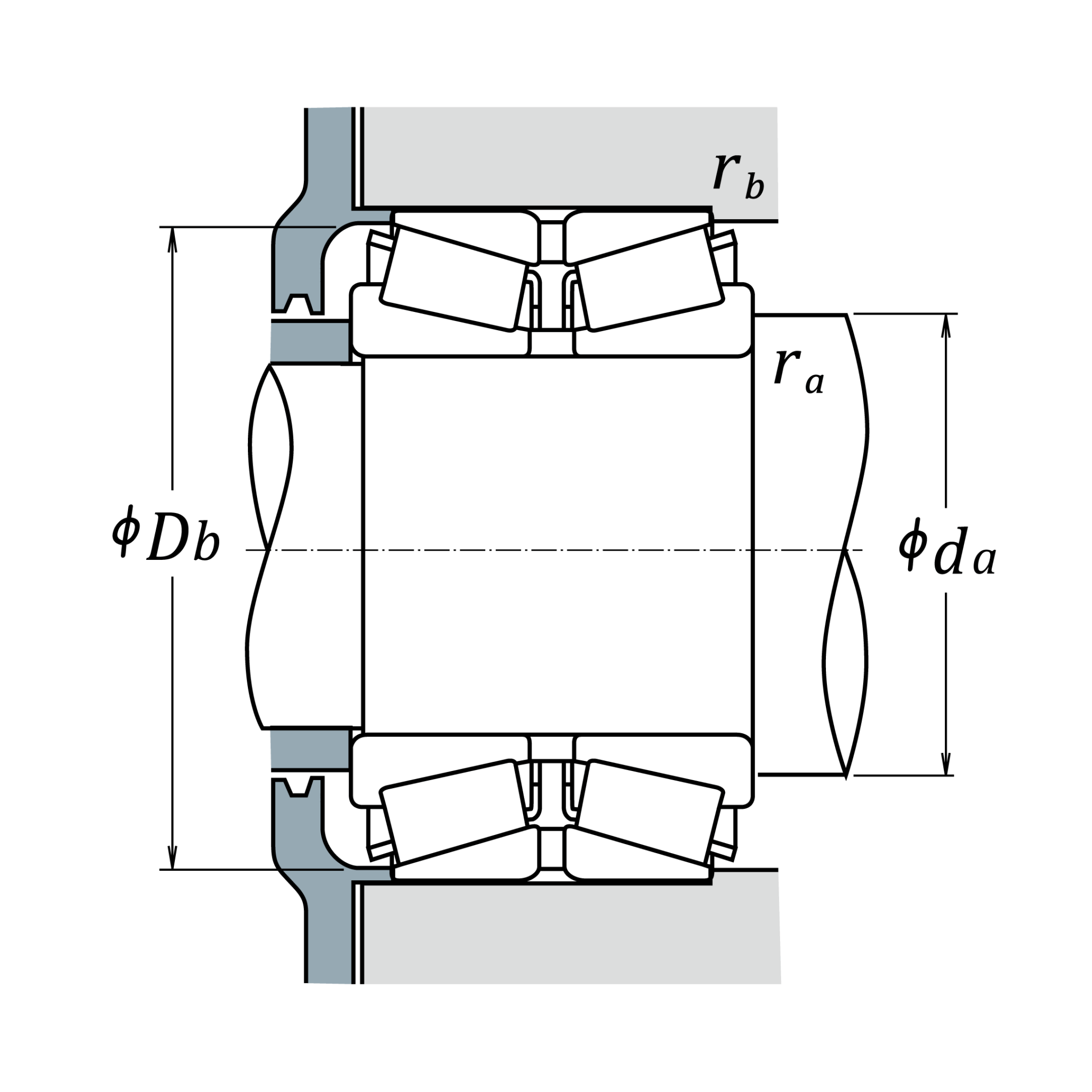

| da (min.) | 123 | mm | Diameter of shaft abutment |
| rb (max.) | 0.8 | mm | Radius of housing fillet of outer ring |
| Db (min.) | 182 | mm | Minimum width of space required in housing on large side face |
| ra (max.) | 2 | mm | Radius of shaft fillet of inner ring |
| e | 0.42 | Constant | |
| Y2 | 2.4 | Axial load Factors | |
| Y3 | 1.6 | Axial load Factors | |
| Y0 | 1.6 | Axial load Factors |
| (approx.) | 12.6 | kg |
