108

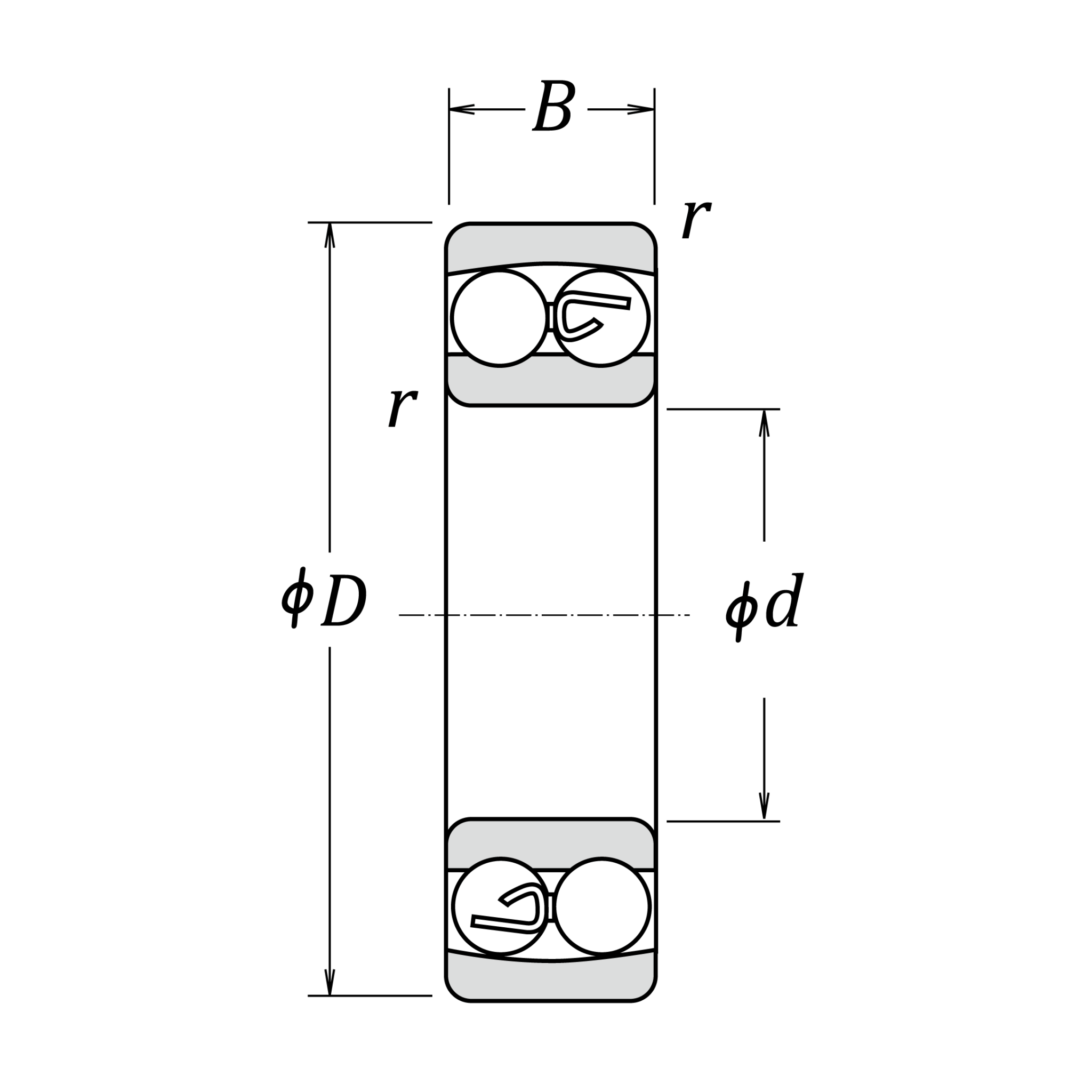

| d | 8 | mm | Bore diameter |
| D | 22 | mm | Outside diameter |
| B | 7 | mm | Width |
| r (min.) | 0.3 | mm | Chamfer dimension |
| Cr | 3000 | N | Basic dynamic load rating |
| C0r | 600 | N | Basic static load rating |
| Grease | 26000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 32000 | min-1 | Oil-bath lubrication |
| da (min.) | 10 | mm | Diameter of shaft abutment |
| Da (max.) | 20 | mm | Diameter of housing abutment |
| ra (max.) | 0.3 | mm | Radius of shaft or housing fillet |
| e | 0.31 | Constant | |
| Y2 | 3.1 | Axial load Factors | |
| Y3 | 2 | Axial load Factors | |
| Y0 | 2.1 | Axial load Factors |
| (approx.) | 0.016 | kg |
