10BSR10S

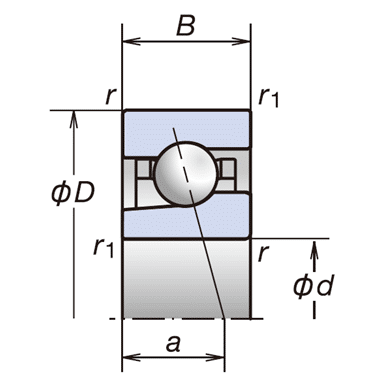

| BSR: 15° | Bearing Type | ||
| d | 10 | mm | Bore diameter |
| D | 26 | mm | Outside diameter |
| B | 8 | mm | Width |
| r(min.) | 0.3 | mm | Chamfer Dimension |
| r1(min.) | 0.15 | mm | Chamfer Dimension |
| Cr | 3.80 | kN | Basic Dynamic Load Rating |
| C0r | 1.18 | kN | Basic Static Load Rating |
| Grease | 88900 | min-1 | Limiting Speed |
| Oil (Oil-air) | 123000 | min-1 | Limiting Speed |
| da(min.) | 12.5 | mm | Diameter of Shaft Abutment |
| Da(max.) | 23.5 | mm | Diameter of Housing Abutment |
| Db(max.) | 24.8 | mm | Diameter of Housing Abutment |
| ra(max.) | 0.3 | mm | Radius of Shaft or Housing Fillet |
| rb(max.) | 0.15 | mm | Radius of Shaft or Housing Fillet |
| f0 | 7.10 | Factor |
Performance
| Pa | 1.44 | kN | Permissible Axial Load |
Preload,Rigidity(DB and DF arrangement)
| Preload | Axial Rigidity | Measured axial clearance | |
| EL | 8.4N | 10N/μm | 5μm |
| L | 17N | 13N/μm | 2μm |
| M | 37N | 18N/μm | -3μm |
| 0.021 | kg | Mass(approx.) |
