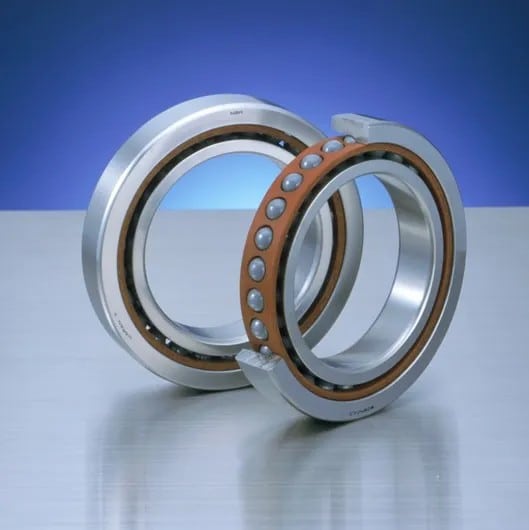

130BNR10E
| BNR: 18° | Bearing Type | ||
| d | 130 | mm | Bore diameter |
| D | 200 | mm | Outside diameter |
| B | 33 | mm | Width |
| r(min.) | 2 | mm | Chamfer Dimension |
| r1(min.) | 1 | mm | Chamfer Dimension |
| Cr | 75.5 | kN | Basic Dynamic Load Rating |
| C0r | 61.5 | kN | Basic Static Load Rating |
| Grease | 9100 | min-1 | Limiting Speed |
| Oil (Oil-air) | 13000 | min-1 | Limiting Speed |
| da(min.) | 140 | mm | Diameter of Shaft Abutment |
| Da(max.) | 190 | mm | Diameter of Housing Abutment |
| Db(max.) | 194 | mm | Diameter of Housing Abutment |
| ra(max.) | 2 | mm | Radius of Shaft or Housing Fillet |
| rb(max.) | 1 | mm | Radius of Shaft or Housing Fillet |
| f0 | 11.0 | Factor |
Performance
| Pa | 89.5 | kN | Permissible Axial Load |
Preload,Rigidity(DB and DF arrangement)
| Preload | Axial Rigidity | Measured axial clearance | |
| EL | 98N | 82N/μm | 0μm |
| L | 739N | 168N/μm | -20μm |
| M | 1522N | 223N/μm | -36μm |
| 3.41 | kg | Mass(approx.) |
