16004

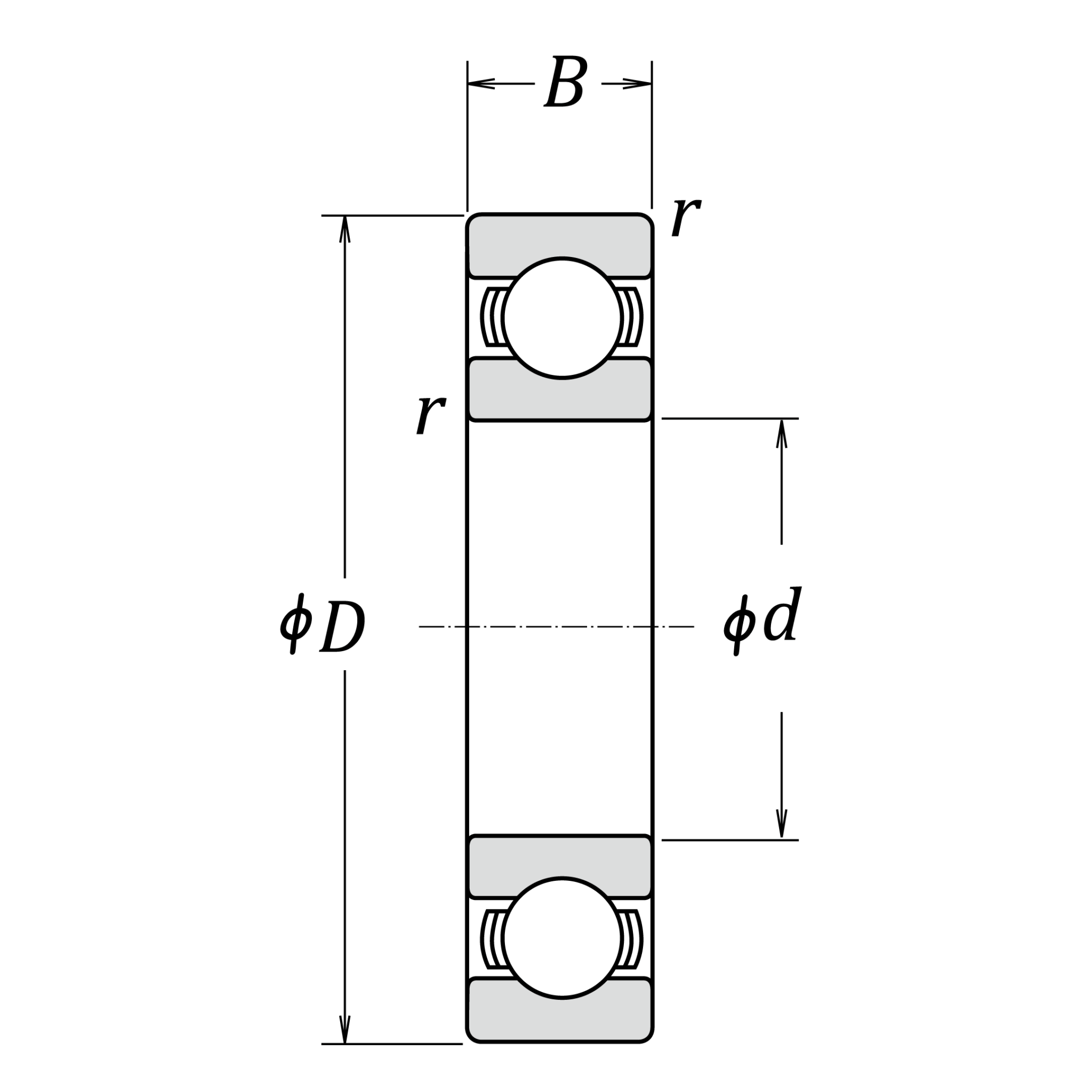

| d | 20 | mm | Bore diameter |
| D | 42 | mm | Outside diameter |
| B | 8 | mm | Width |
| r (min.) | 0.3 | mm | Chamfer dimension |
| Cr | 8700 | N | Basic dynamic load rating |
| C0r | 4450 | N | Basic static load rating |
| Grease | 18000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 20000 | min-1 | Oil-bath lubrication |

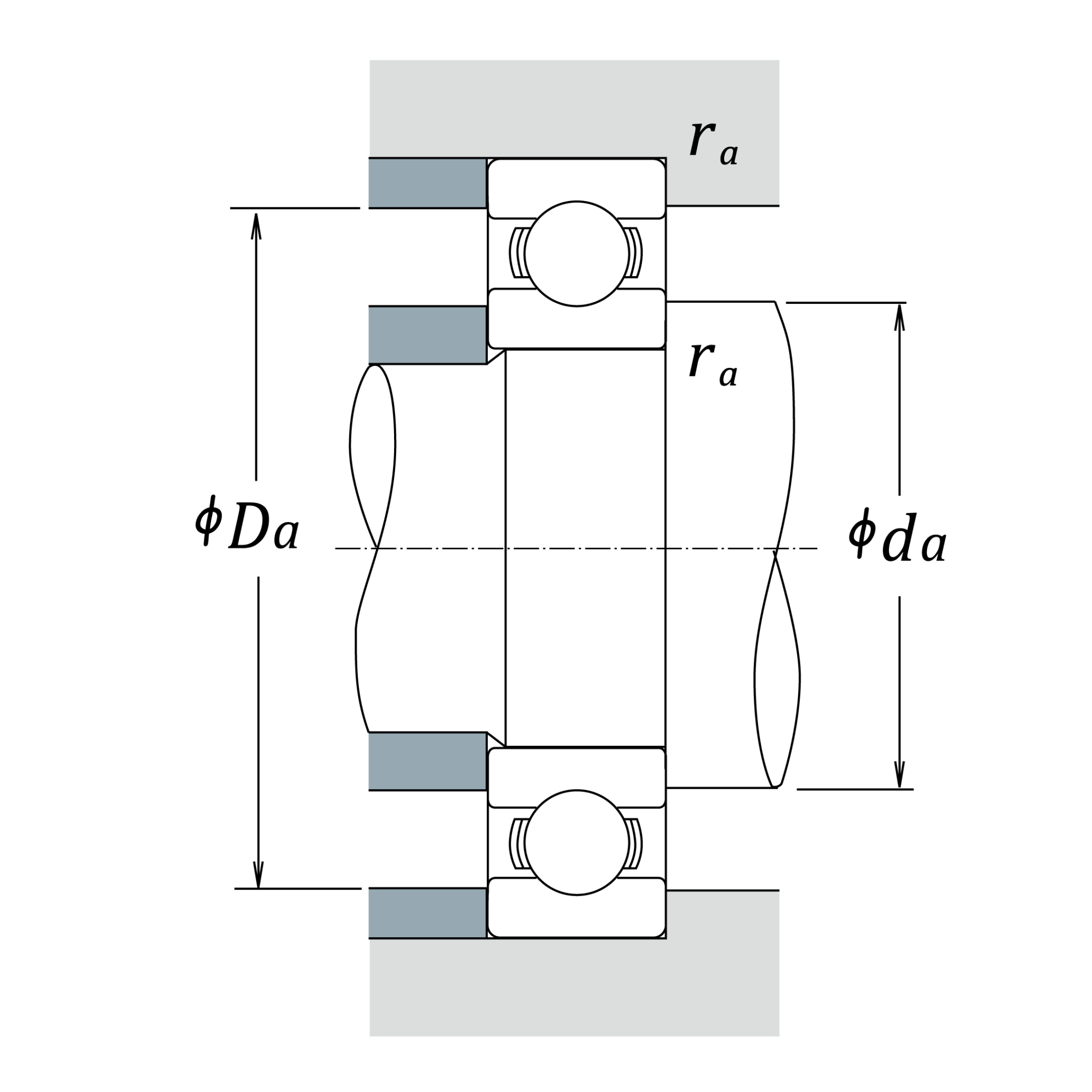

| da (min.) | 22 | mm | Diameter of shaft abutment |
| Da (max.) | 40 | mm | Diameter of housing abutment |
| ra (max.) | 0.3 | mm | Radius of shaft or housing fillet |
| fo | 14.5 | Factor |
| (approx.) | 0.048 | kg |
