21309EAE4

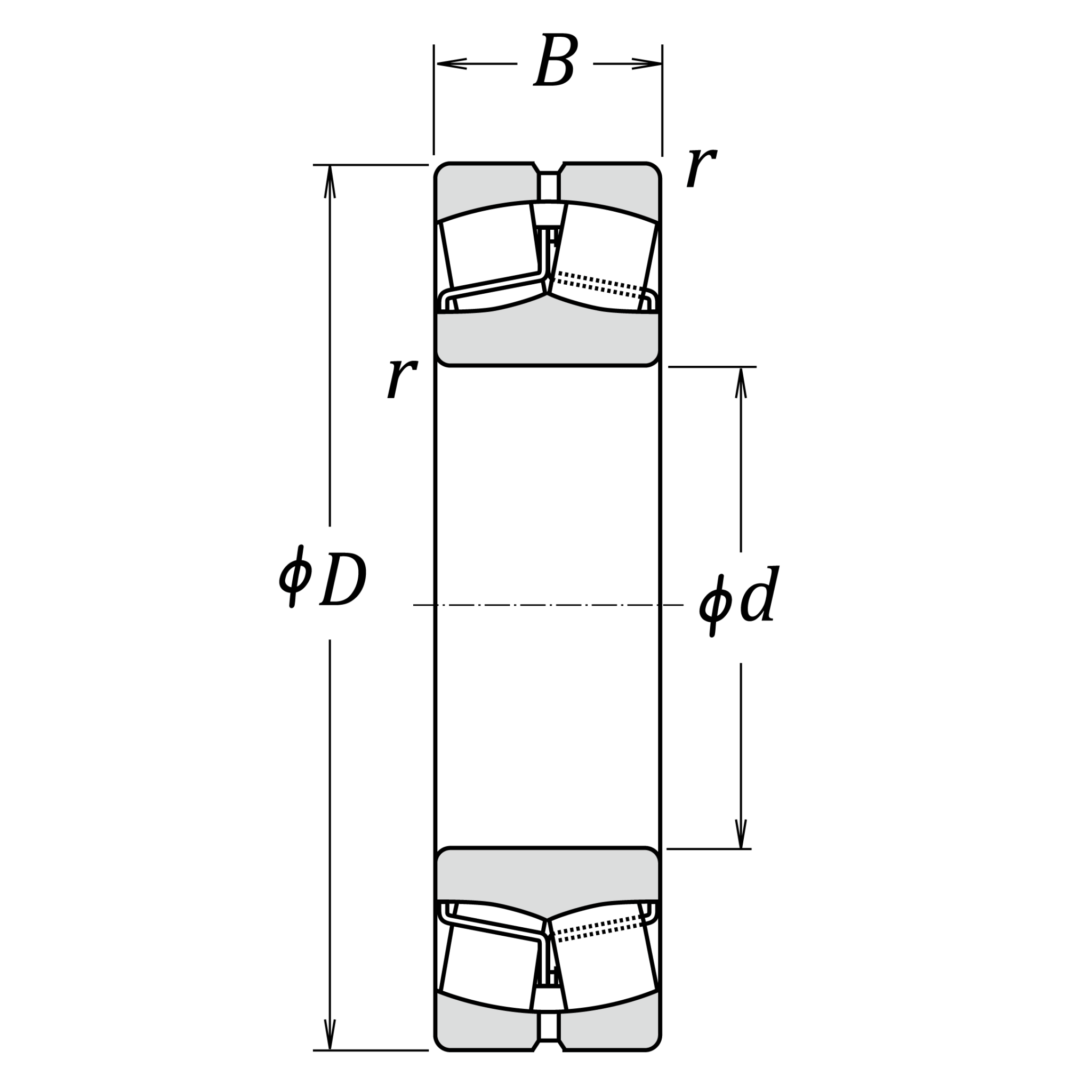

| d | 45 | mm | Bore diameter |
| D | 100 | mm | Outside diameter |
| B | 25 | mm | Width |
| r (min.) | 1.5 | mm | Chamfer dimension |
| Cr | 149000 | N | Basic dynamic load rating |
| C0r | 144000 | N | Basic static load rating |
| Thermal Speed Rating (Oil-bath) | 6000 | min-1 | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Mechanical (forced-circulation oil) | 9000 | min-1 | Properly designed and controlled forced-circulation oil lubrication |
| Grease | 5000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 6300 | min-1 | Oil-bath lubrication |
| da (min.) | 54 | mm | Diameter of shaft abutment |
| da (max.) | 65 | mm | Diameter of shaft abutment |
| Da (min.) | 89 | mm | Diameter of housing abutment |
| Da (max.) | 91 | mm | Diameter of housing abutment |
| ra (max.) | 1.5 | mm | Radius of shaft or housing fillet |
| e | 0.23 | Constant | |
| Y2 | 4.3 | Axial load Factors | |
| Y3 | 2.9 | Axial load Factors | |
| Y0 | 2.8 | Axial load Factors |
| (approx.) | 0.96 | kg |
