22322EAE4

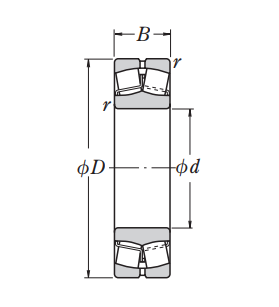

| d | 110 | mm | Bore diameter |
| D | 240 | mm | Outside diameter |
| B | 80 | mm | Width |
| r (min.) | 3 | mm | Chamfer dimension |
| Cr | 1030000 | N | Basic dynamic load rating |
| C0r | 1120000 | N | Basic static load rating |
| Mechanical (forced-circulation oil) | 1900 | min-1 | Properly designed and controlled forced-circulation oil lubrication |
| Grease | 1400 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 1900 | min-1 | Oil-bath lubrication |

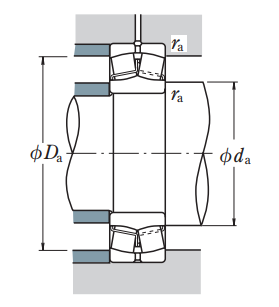

| da (min.) | 124 | mm | Diameter of shaft abutment |
| da (max.) | 145 | mm | Diameter of shaft abutment |
| Da (min.) | 206 | mm | Diameter of housing abutment |
| Da (max.) | 226 | mm | Diameter of housing abutment |
| ra (max.) | 2.5 | mm | Radius of shaft or housing fillet |
| e | 0.33 | Constant | |
| Y2 | 3.1 | Axial load Factors | |
| Y3 | 2.1 | Axial load Factors | |
| Y0 | 2 | Axial load Factors |
| (approx.) | 17.6 | kg |
