240/710CAMK30E4 Series

Srb Ctb Pressed Steel Cage Ea

Parts Number

  • 240/710CAMK30E4
  • 240/710CAMK30E4C3
  • 240/710CAMK30E4C2
  • 240/710CAMK30E4C4
  • 240/710CAMK30E4C5

    • Inquiry

    Product Information

    Designations

    240/710CAMK30E4

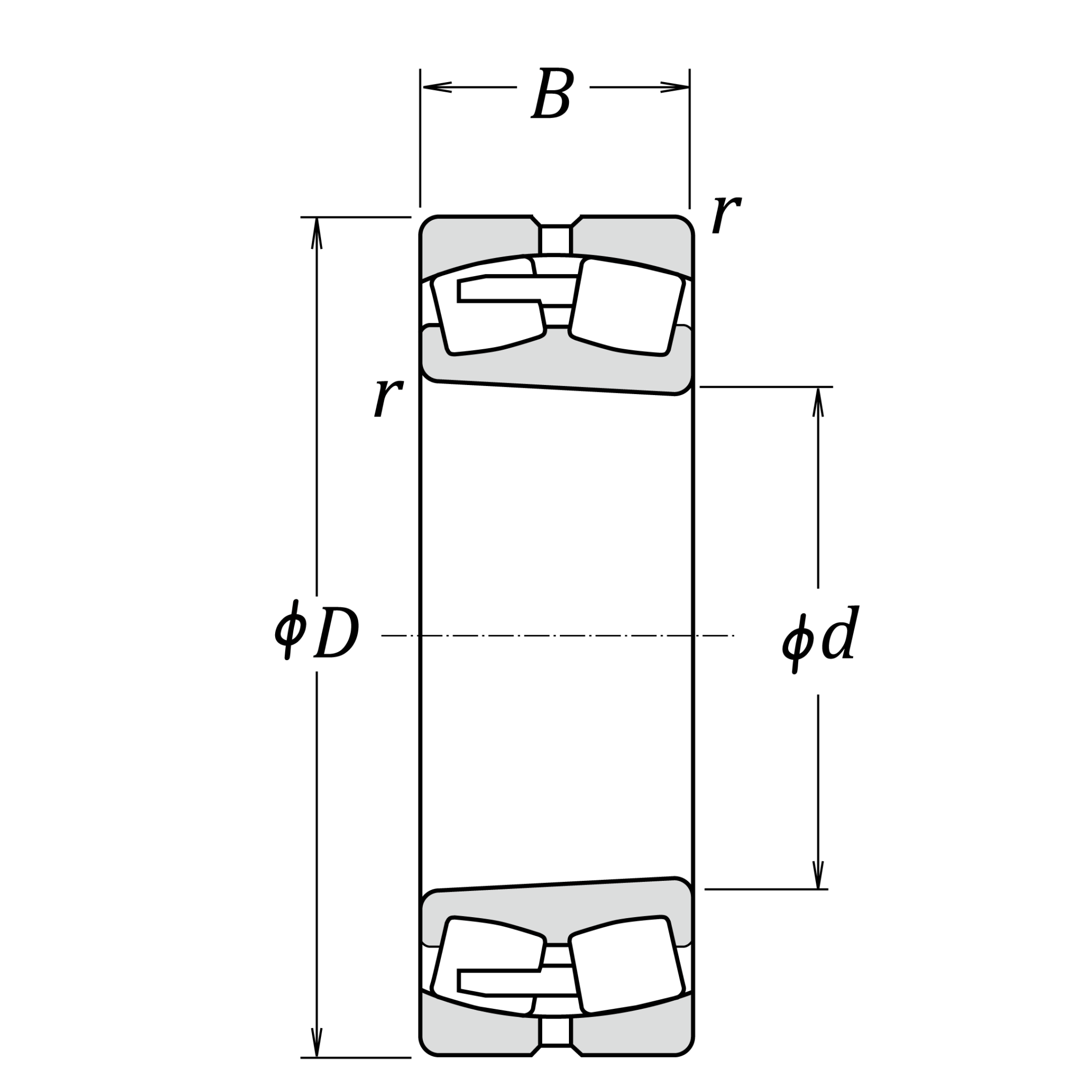

    Boundary Dimensions

    d710mmBore diameter
    D1030mmOutside diameter
    B315mmWidth
    r (min.)7.5mmChamfer dimension

    Basic Load Ratings

    Cr8850000NBasic dynamic load rating
    C0r20700000NBasic static load rating

    Speeds

    Thermal Speed Rating (Oil-bath)240min-1Oil-bath lubrication subject to conditions outlined in ISO 15312
    Grease190min-1Grease lubrication
    Oil (Oil-bath)240min-1Oil-bath lubrication

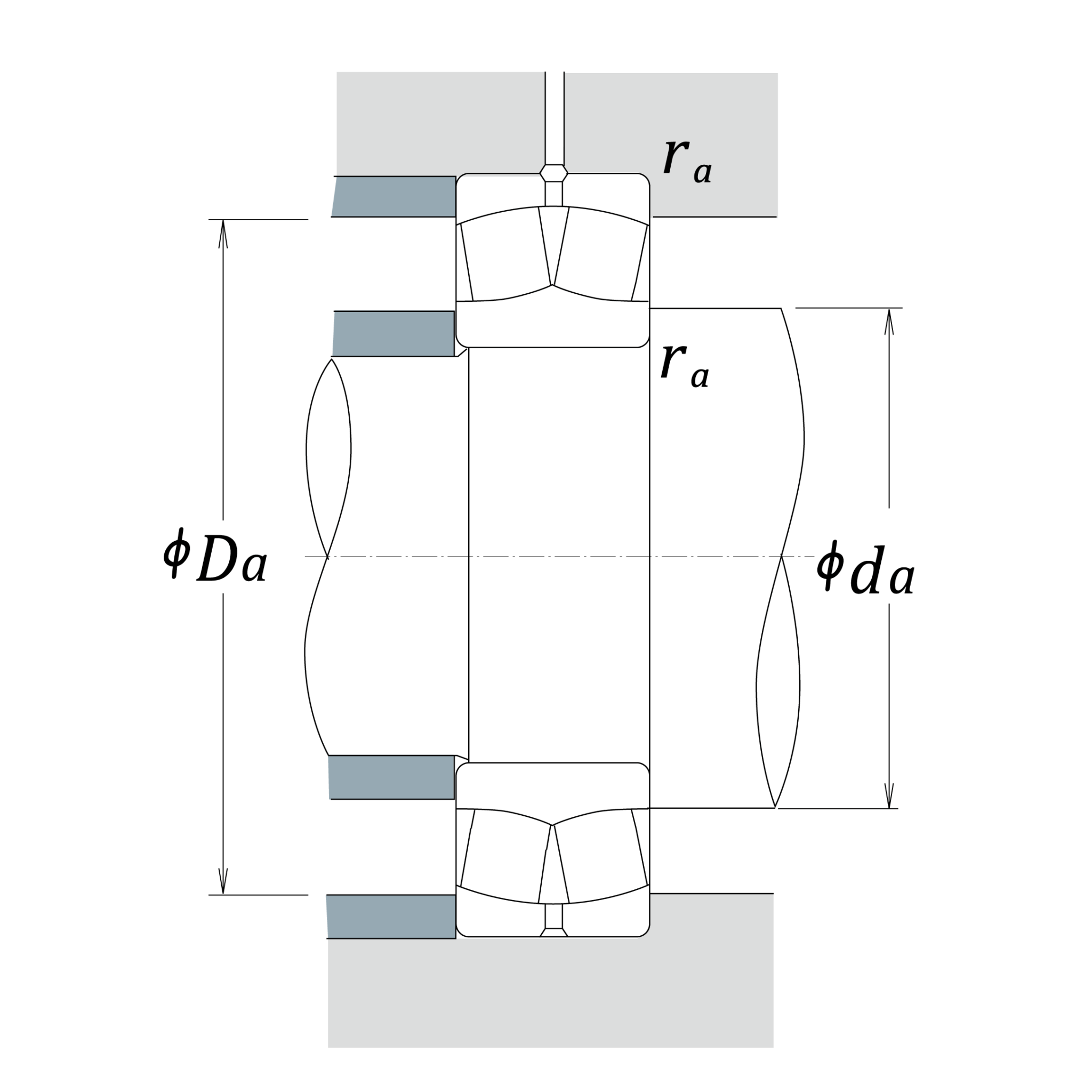

    Abutment and Fillet Dimensions

    da (min.)746mmDiameter of shaft abutment
    Da (min.)916mmDiameter of housing abutment
    Da (max.)994mmDiameter of housing abutment
    ra (max.)6mmRadius of shaft or housing fillet

    Calculation factors

    e0.29Constant
    Y23.4Axial load Factors
    Y32.3Axial load Factors
    Y02.2Axial load Factors

    Mass

    (approx.)861kg
