5200ZZ

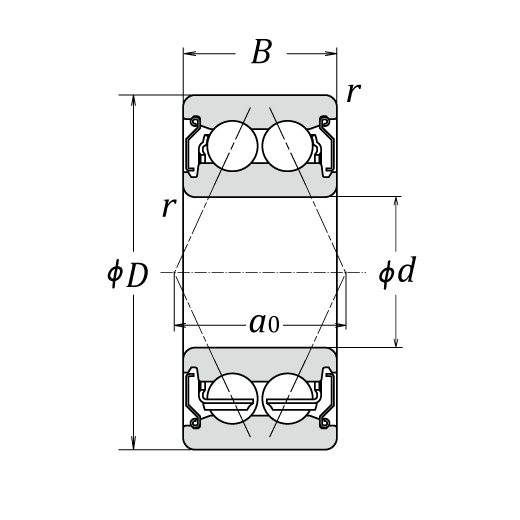

| d | 10 | mm | Bore diameter |
| D | 30 | mm | Outside diameter |
| B | 14.3 | mm | Width |
| r (min.) | 0.6 | mm | Chamfer dimension |
| Cr | 7850 | N | Basic dynamic load rating |
| C0r | 3900 | N | Basic static load rating |
| Grease | 17000 | min-1 | Grease lubrication |

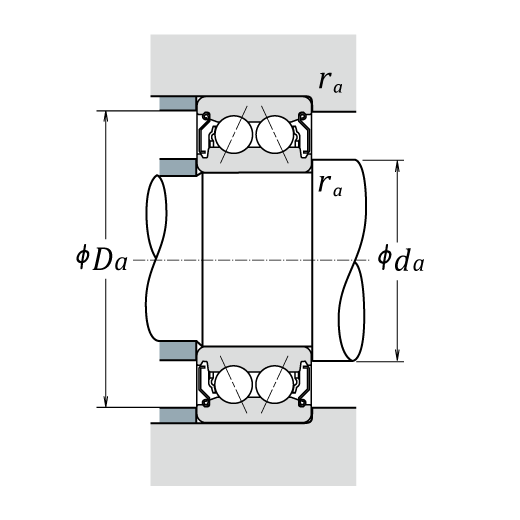

| da (min.) | 15 | mm | Diameter of shaft abutment |
| Da (max.) | 25 | mm | Diameter of housing abutment |
| ra (max.) | 0.6 | mm | Radius of shaft or housing fillet |
| (approx.) | 0.05 | kg |
