5202

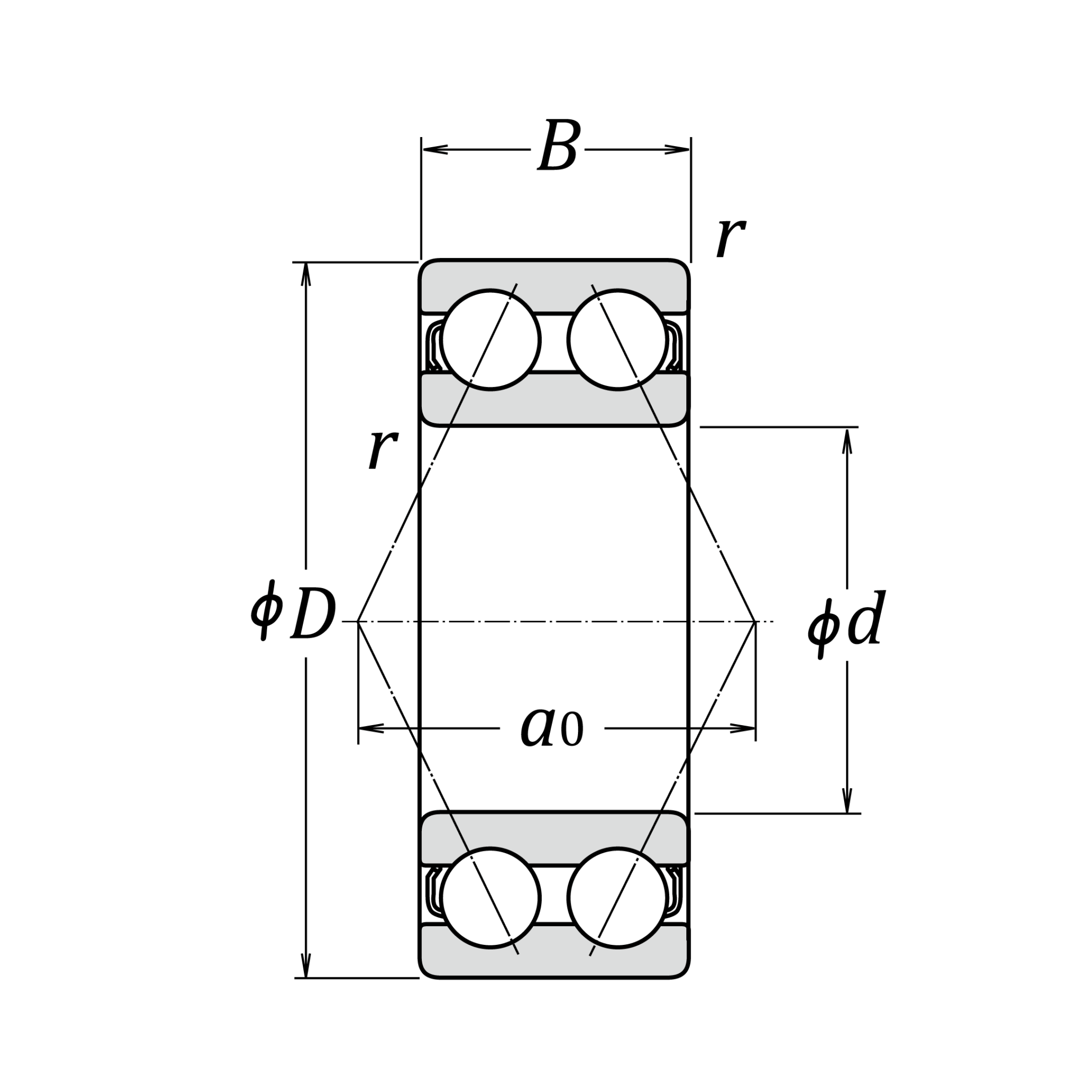

| d | 15 | mm | Bore diameter |
| D | 35 | mm | Outside diameter |
| B | 15.9 | mm | Width |
| r (min.) | 0.6 | mm | Chamfer dimension |
| Cr | 12900 | N | Basic dynamic load rating |
| C0r | 7050 | N | Basic static load rating |
| Grease | 13000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 17000 | min-1 | Oil-bath lubrication |

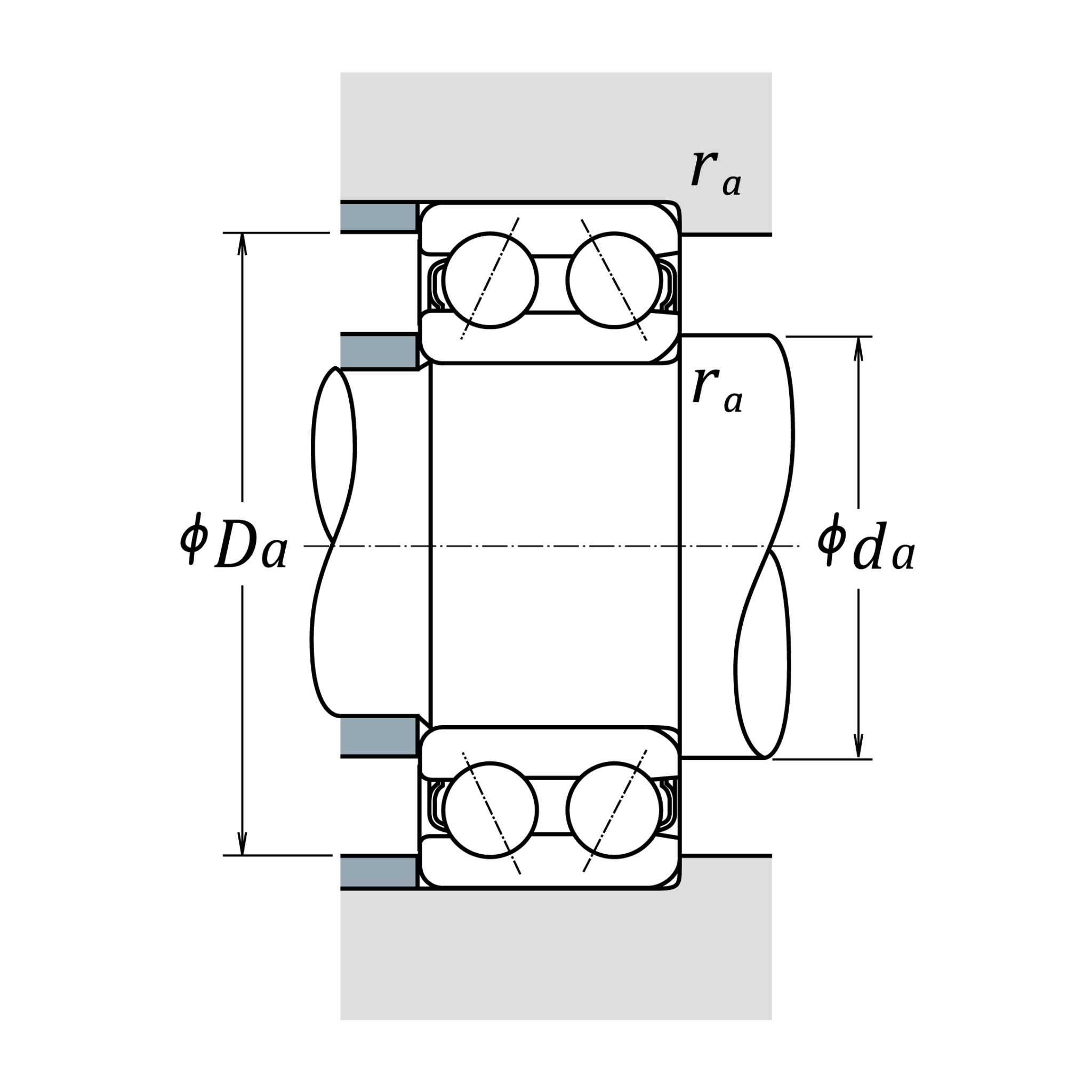

| da (min.) | 20 | mm | Diameter of shaft abutment |
| Da (max.) | 30 | mm | Diameter of housing abutment |
| ra (max.) | 0.6 | mm | Radius of shaft or housing fillet |
| (approx.) | 0.07 | kg |
