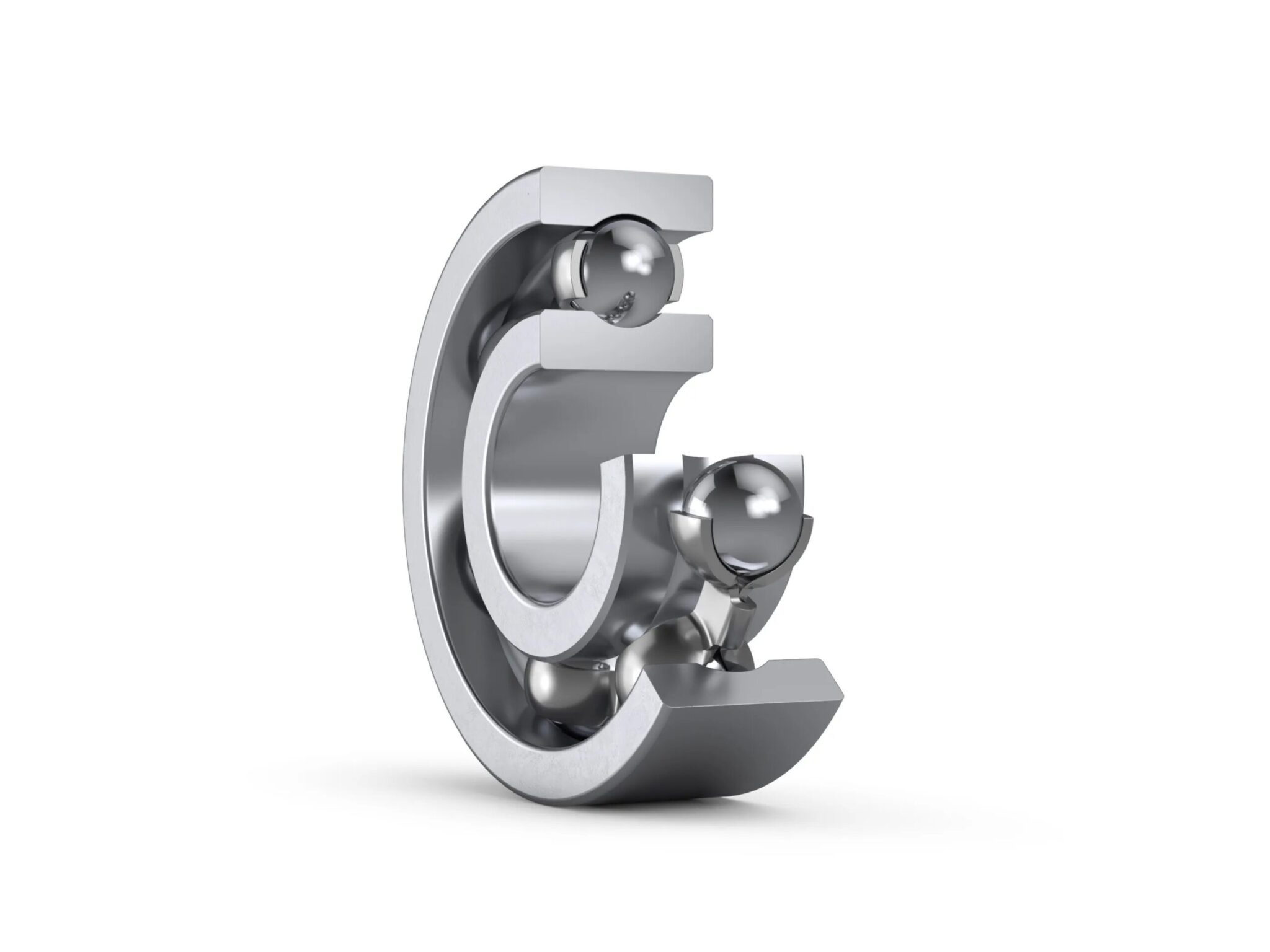

601X
| d | 1.5 | mm | Bore diameter |
| D | 6 | mm | Outside diameter |
| B | 2.5 | mm | Width |
| r (min.) | 0.15 | mm | Chamfer dimension |
| Cr | 365 | N | Basic dynamic load rating |
| C0r | 98 | N | Basic static load rating |
| Grease | 75000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 90000 | min-1 | Oil-bath lubrication |
| da (min.) | 2.7 | mm | Diameter of shaft abutment |
| Da (max.) | 4.8 | mm | Diameter of housing abutment |
| ra (max.) | 0.15 | mm | Radius of shaft or housing fillet |
| (approx.) | 0.00033 | kg |
