604

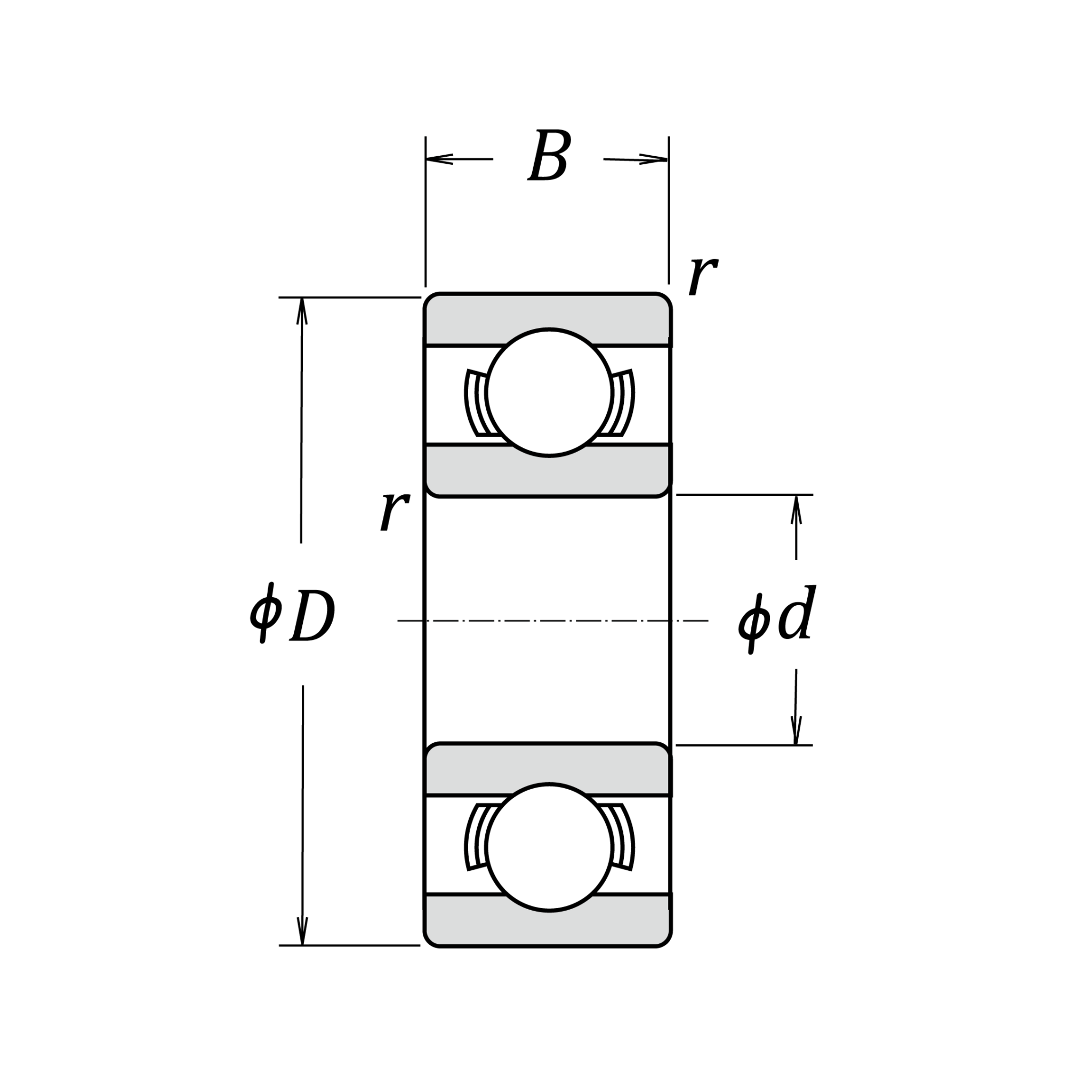

| d | 4 | mm | Bore diameter |
| D | 12 | mm | Outside diameter |
| B | 4 | mm | Width |
| r (min.) | 0.2 | mm | Chamfer dimension |
| Cr | 1050 | N | Basic dynamic load rating |
| C0r | 345 | N | Basic static load rating |
| Grease | 48000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 56000 | min-1 | Oil-bath lubrication |

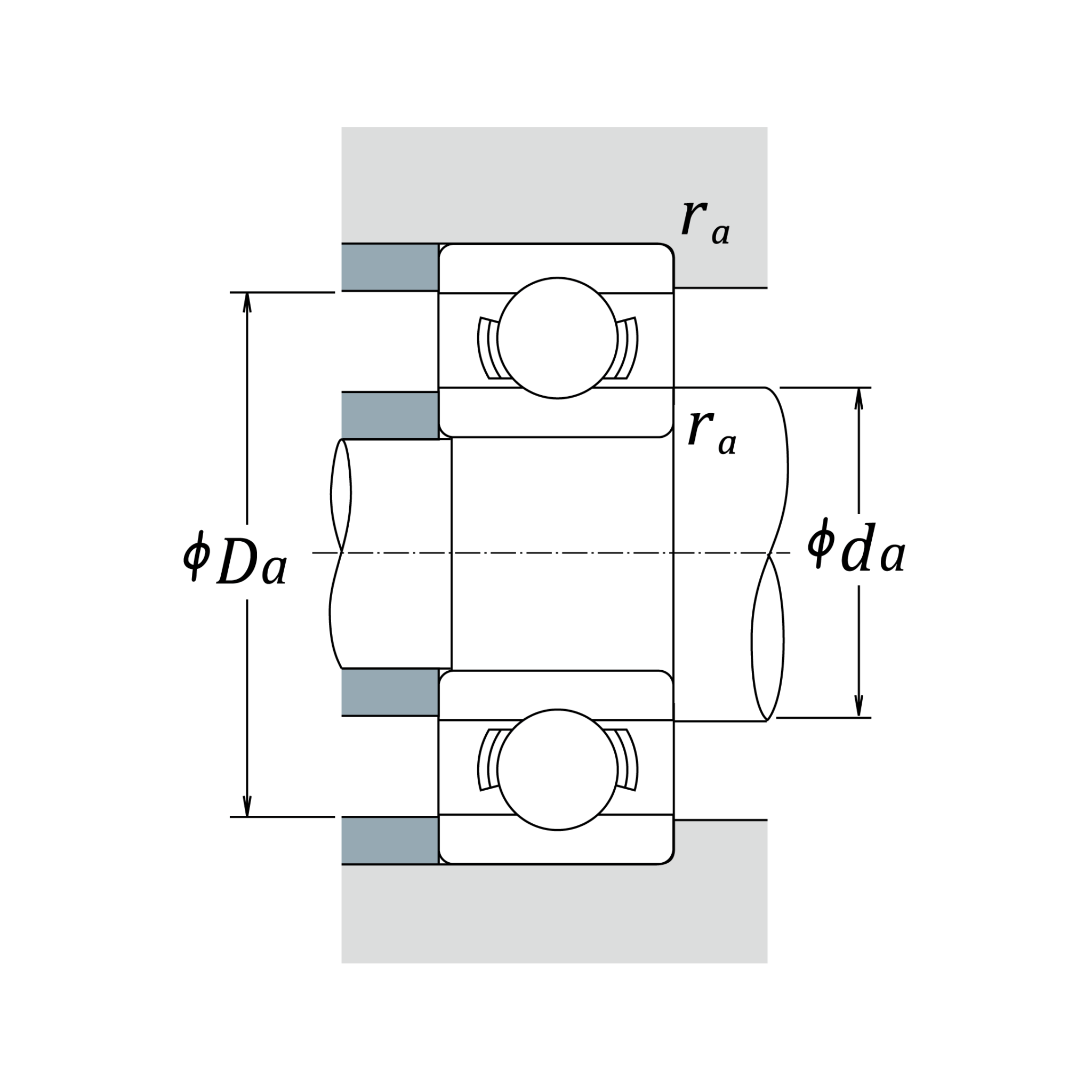

| da (min.) | 5.6 | mm | Diameter of shaft abutment |
| Da (max.) | 10.4 | mm | Diameter of housing abutment |
| ra (max.) | 0.2 | mm | Radius of shaft or housing fillet |
| (approx.) | 0.00225 | kg |
