605DD

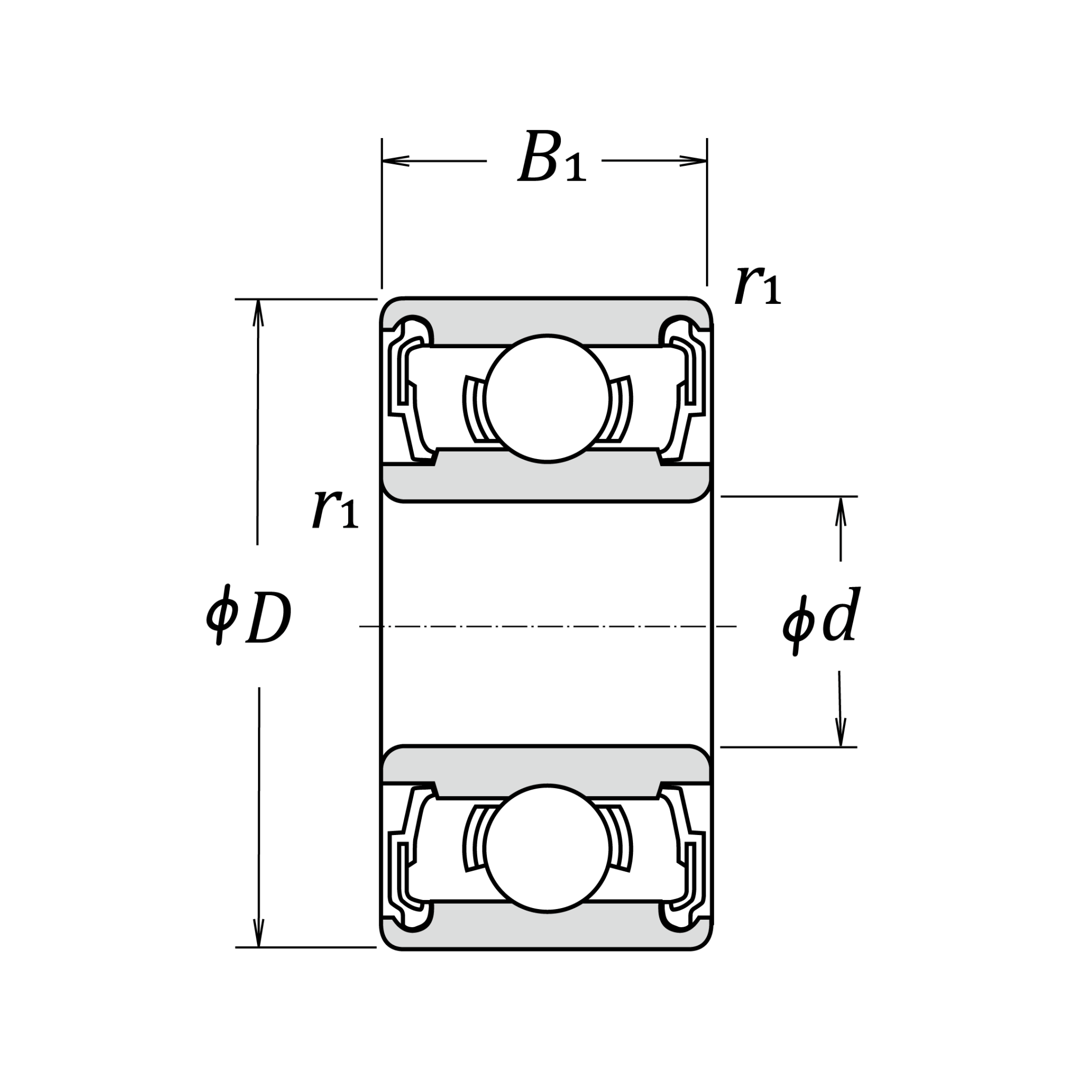

| d | 5 | mm | Bore diameter |
| D | 14 | mm | Outside diameter |
| B | 5 | mm | Width |
| r1 (min.) | 0.2 | mm | Chamfer dimension |
| Cr | 1460 | N | Basic dynamic load rating |
| C0r | 505 | N | Basic static load rating |
| Grease | 38000 | min-1 | Grease lubrication |

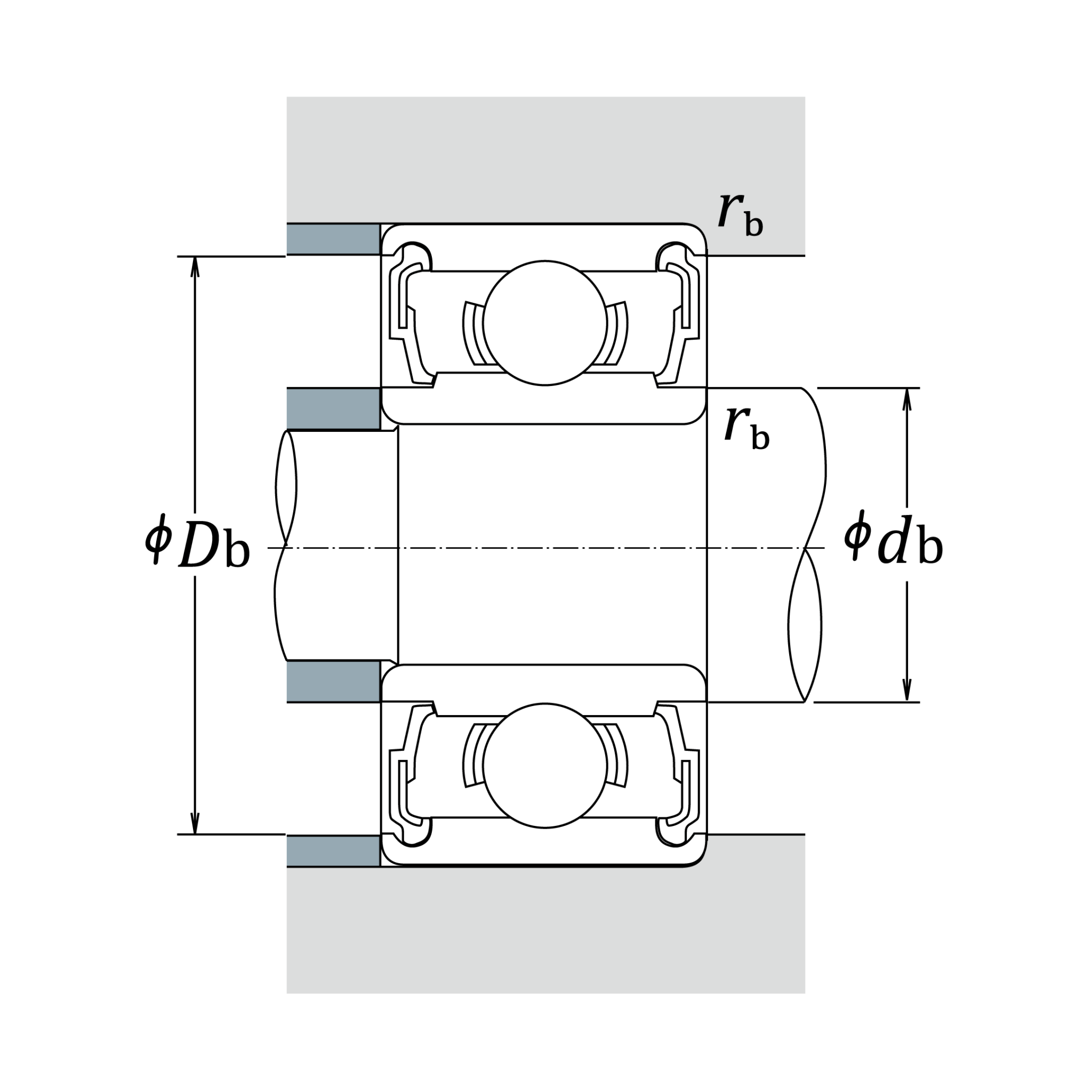

| db (max.) | 6.9 | mm | Diameter of shaft abutment |
| Db (max.) | 12.2 | mm | Diameter of housing abutment |
| rb (max.) | 0.2 | mm | Radius of shaft or housing fillet |
| (approx.) | 0.00348 | kg |
