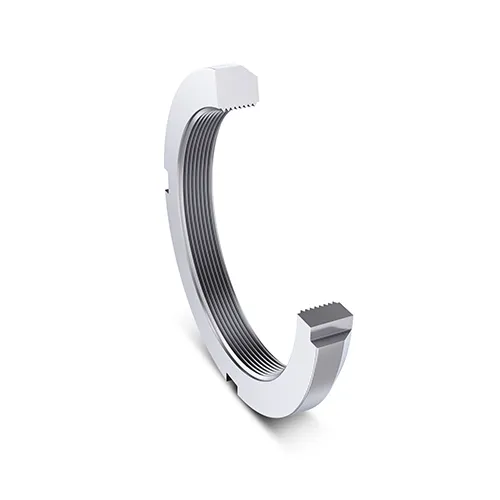

AN04
Associated products
| Lock-Washer | AW04X | Lock-Washer |
Shaft diameter (Reference)
| d | 20 | mm | Shaft diameter (Reference) |
Basic Dimensions
| d2 | 32 | mm | Outside diameter lock nut |
| B | 6 | mm | Width lock nut |
| G | M20x1 | Thread size | |
| d1 | 26 | mm | Diameter locating side face |
| g | 28 | mm | Distance between locating slots |
| b | 4 | mm | Width locating slot |
| h | 2 | mm | Depth locating slot |
| d3 | 20.5 | mm | Thread diameter |
| r | 0.4 | mm | Locating slot chanfer |
| Mass | 0.019 | kg | Mass (approx.) |
