AN100
Associated products
| Stopper | AL100 | Stopper |
Shaft diameter (Reference)
| d | 500 | mm | Shaft diameter (Reference) |

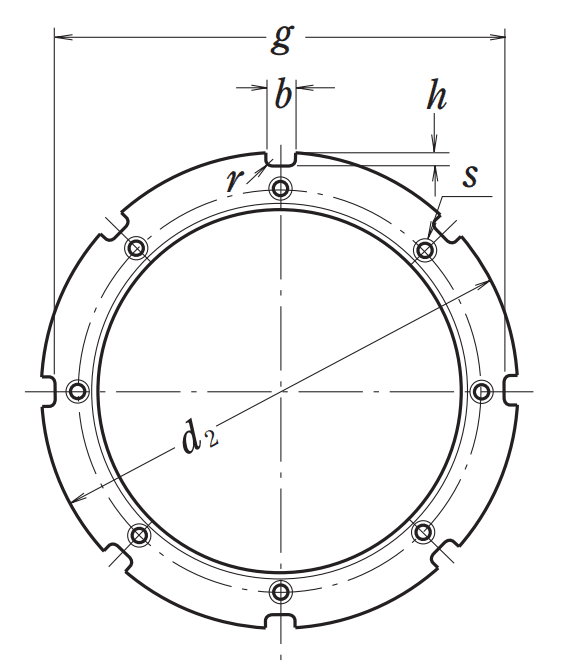

Basic Dimensions
| d2 | 630 | mm | Outside diameter lock nut |
| B | 80 | mm | Width lock nut |
| G | Tr500x5 | Thread size | |
| d1 | 580 | mm | Diameter locating side face |
| g | 584 | mm | Distance between locating slots |
| b | 40 | mm | Width locating slot |
| h | 23 | mm | Depth locating slot |
| d3 | 502.5 | mm | Thread diameter |
| r | 1 | mm | Locating slot chanfer |

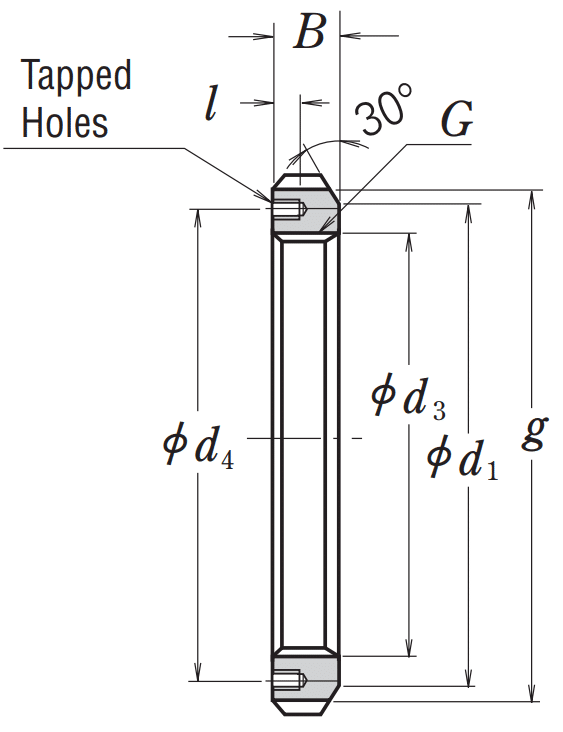

Tapped Holes
| l | 27 | mm | Depth of thread hole |
| (S) | M16×2 | Screw Thread | |
| d4 | 539 | mm | Pitch diameter of thread hole |
| Mass | 63.5 | kg | Mass (approx.) |
