C-UCFL201D1
| Cr | 12.8 | kN | Temel dinamik yük değeri |
| C0r | 6.65 | kN | Temel statik yük değeri |
Included products
| Bearing | UC201D1 | Bearing | |
| Housing | FL204D1 | Housing |

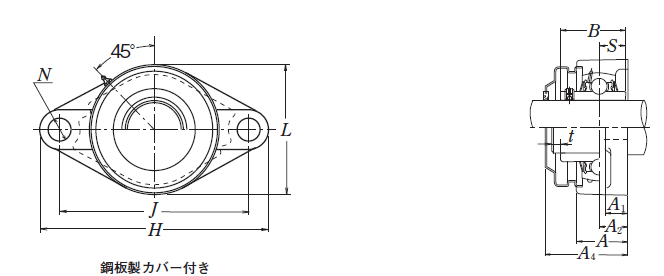

Nominal Dimensions
| d | 12 | mm | Delik çapı |
| L,L1 | 67 | mm | Overall height |
| J | 90 | mm | Distance between attachment bolts |
| N | 12 | mm | Diameter of attachment bolt hole |
| A2 | 15 | mm | Flange width |
| A1 | 11 | mm | Flange width |
| A5 | 46 | mm | Width including end cover |
| B,B1,B2 | 31 | mm | Width of inner ring |
| t | 2 | mm | Gümrükleme |
| H | 113 | mm | Overall length |
| L2 | 30 | mm | Height of spherical seat centre |
| S | 12.7 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M10 | Bolt size |
| mass | 0.6 | kg | Mass approx. |
