C-UCFS307D1
| Cr | 33.5 | kN | Temel dinamik yük değeri |
| C0r | 19.1 | kN | Temel statik yük değeri |
Included products
| Bearing | UC307D1 | Bearing | |
| Housing | FS307D1 | Housing |

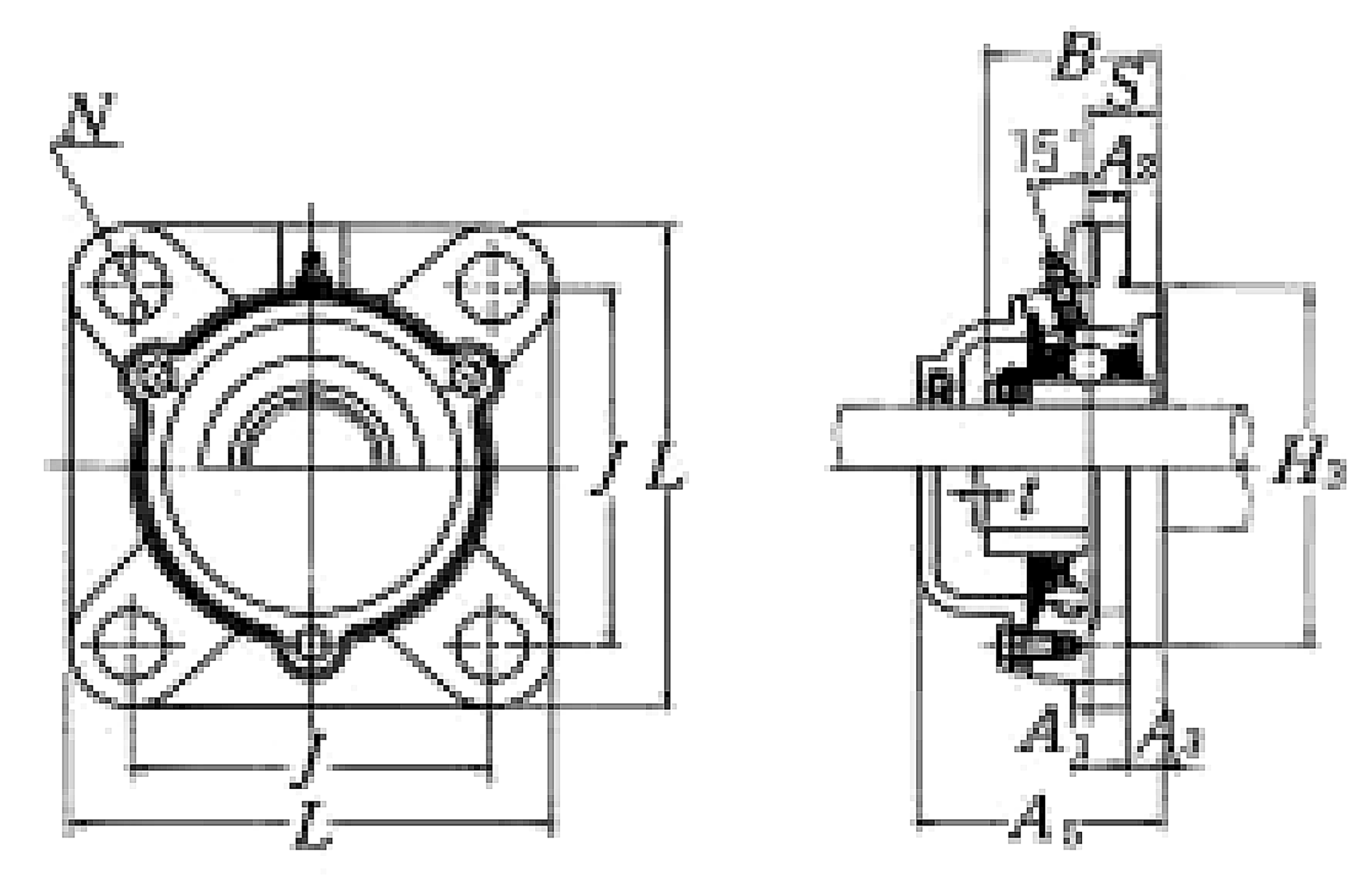

Nominal Dimensions
| d | 35 | mm | Delik çapı |
| L | 135 | mm | Overall length |
| H3 | 100 | mm | Outer diameter of Spigot Joint |
| J | 100 | mm | Distance between attachment bolts |
| A3 | 9 | mm | Height of of Spigot Joint |
| A2 | 11 | mm | Flange width |
| A1 | 16 | mm | Flange width |
| A5 | 67 | mm | Width including end cover |
| B,B1,B2 | 48 | mm | Width of inner ring |
| t | 3 | mm | Gümrükleme |
| S | 19 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M16 | Bolt size |
| mass | 2.8 | kg | Mass approx. |
