NN3076KR

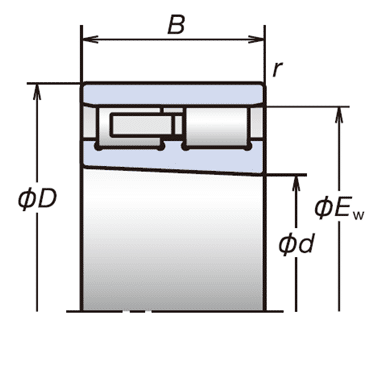

| NN: Inner ring rib type | Bearing Type | ||
| d | 380 | mm | Delik çapı |
| D | 560 | mm | Dış çap |
| B | 135 | mm | Genişlik |
| r(min.) | 5 | mm | Chamfer Dimension |
| Cr | 1770 | kN | Basic Dynamic Load Rating |
| C0r | 3700 | kN | Basic Static Load Rating |
| Yağ | 1400 | min-1 | Limiting Speed |
| Oil (Oil-air) | 1700 | min-1 | Limiting Speed |

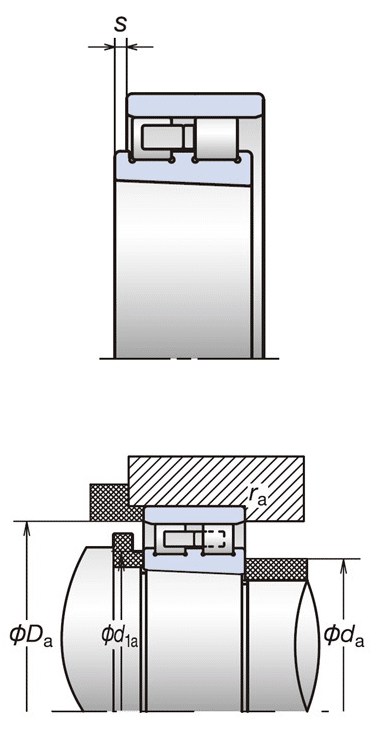

| da(min.) | 400 | mm | Diameter of Shaft Abutment |
| d1a(min.) | 411 | mm | Diameter of Shaft Abutment |
| Da(min.) | 518 | mm | Diameter of Housing Abutment |
| Da(max.) | 540 | mm | Diameter of Housing Abutment |
| ra(max.) | 4 | mm | Radius of Shaft or Housing Fillet |
| 113 | kg | Mass(approx.) |
