UCFCX17D1
| Cr | 96 | kN | Temel dinamik yük değeri |
| C0r | 71.5 | kN | Temel statik yük değeri |
Included products
| Bearing | UCX17D1 | Bearing | |
| Housing | FCX17D1 | Housing |

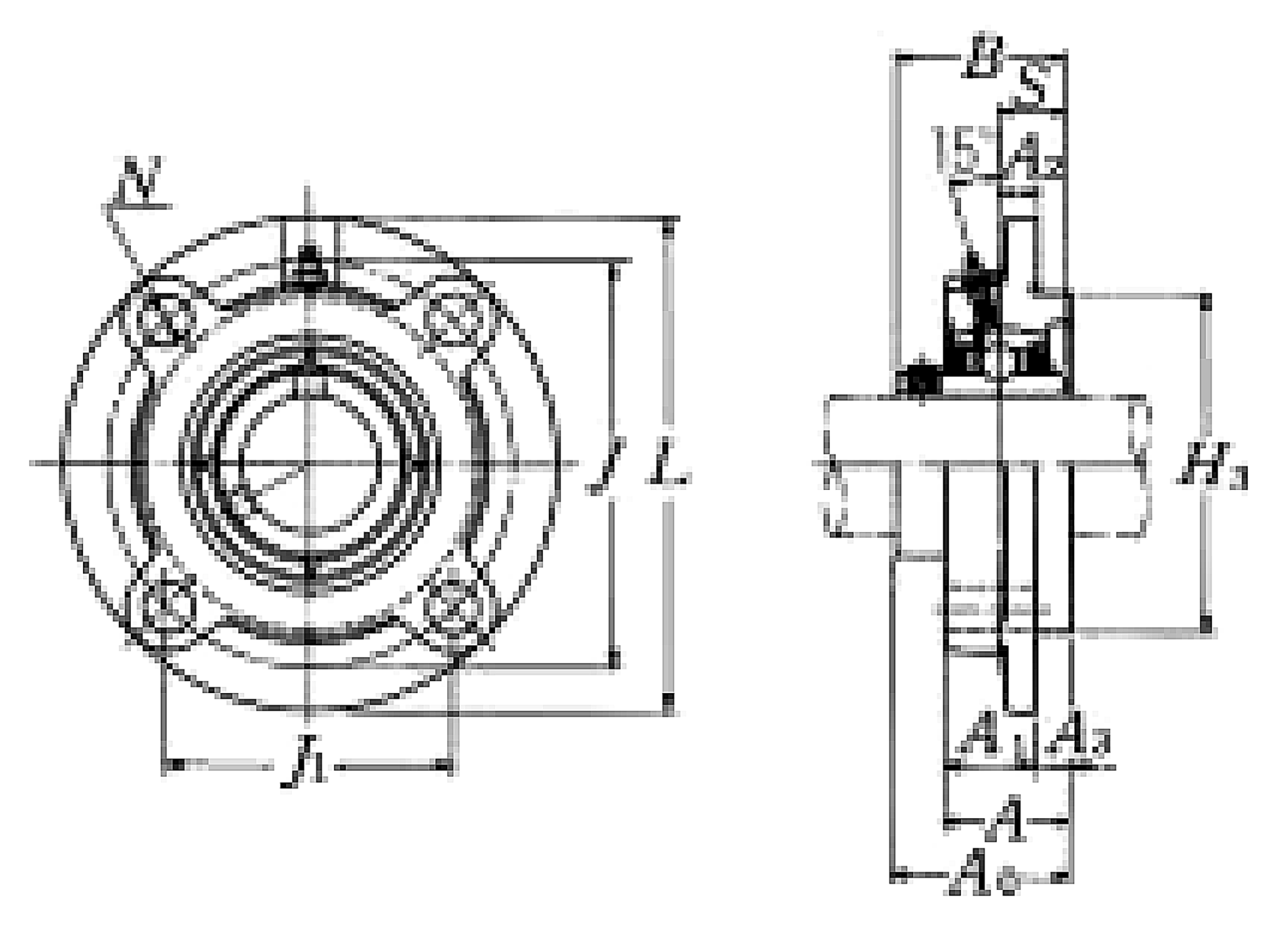

Nominal Dimensions
| d | 85 | mm | Delik çapı |
| L,H | 260 | mm | Overall length |
| H3 | 186 | mm | Outer diameter of Spigot Joint |
| J | 219 | mm | Pitch diameter of attachment bolts |
| J1 | 154.9 | mm | Distance between attachment bolts |
| N | 23 | mm | Diameter of attachment bolt hole |
| A3 | 25 | mm | Height of of Spigot Joint |
| A2 | 10 | mm | Flange width |
| A1 | 36 | mm | Flange width |
| A | 61 | mm | Base width |
| A0 | 91.3 | mm | Overall width |
| B,B1,B2 | 96 | mm | Width of inner ring |
| S | 39.7 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M20 | Bolt size |
| mass | 12 | kg | Mass approx. |
