UKFCX13D1
| Cr | 62 | kN | Temel dinamik yük değeri |
| C0r | 44 | kN | Temel statik yük değeri |
Included products
| Bearing | UKX13D1 | Bearing | |
| Housing | FCX13D1 | Housing |
Associated products
| Adapter sleeve | H2313X | Adapter sleeve |

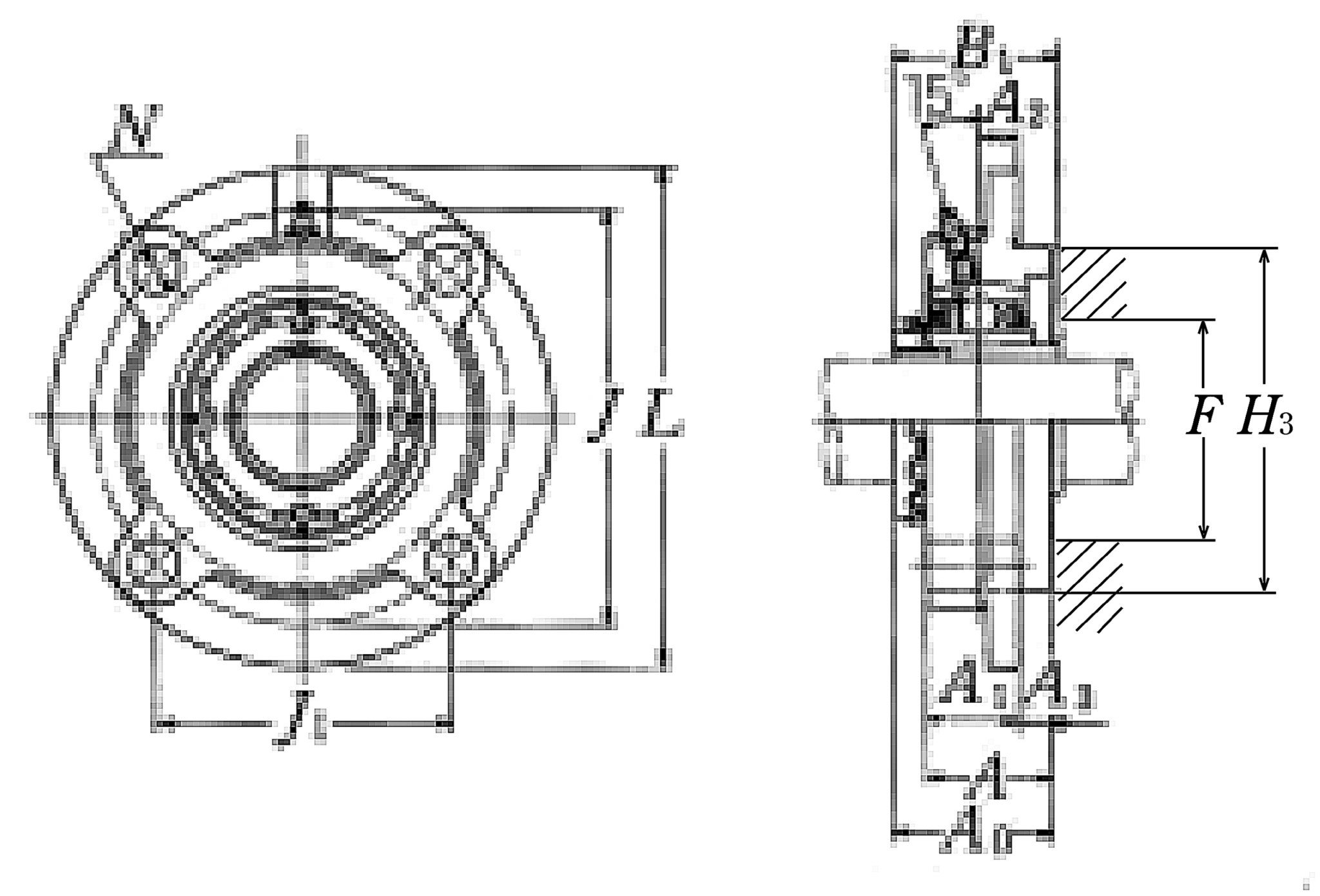

Nominal Dimensions
| d | 60 | mm | Delik çapı |
| L,H | 194 | mm | Overall length |
| H3 | 140 | mm | Outer diameter of Spigot Joint |
| J | 165 | mm | Pitch diameter of attachment bolts |
| J1 | 116.7 | mm | Distance between attachment bolts |
| N | 16 | mm | Diameter of attachment bolt hole |
| A3 | 20 | mm | Height of of Spigot Joint |
| A2 | 11 | mm | Flange width |
| A1 | 33 | mm | Flange width |
| A | 53 | mm | Base width |
| A0 | 66 | mm | Overall width |
| B,B1,B2 | 65 | mm | Width of inner ring |
| F | 74 | mm | Gövde dayanağının çapı |
Mounting information
| G | M14 | Bolt size |
| mass | 5.4 | kg | Mass approx. |
