ZM-UCFC212D1
| Cr | 52.5 | kN | Temel dinamik yük değeri |
| C0r | 36 | kN | Temel statik yük değeri |
Included products
| Bearing | UC212D1 | Bearing | |
| Housing | FC212D1 | Housing |

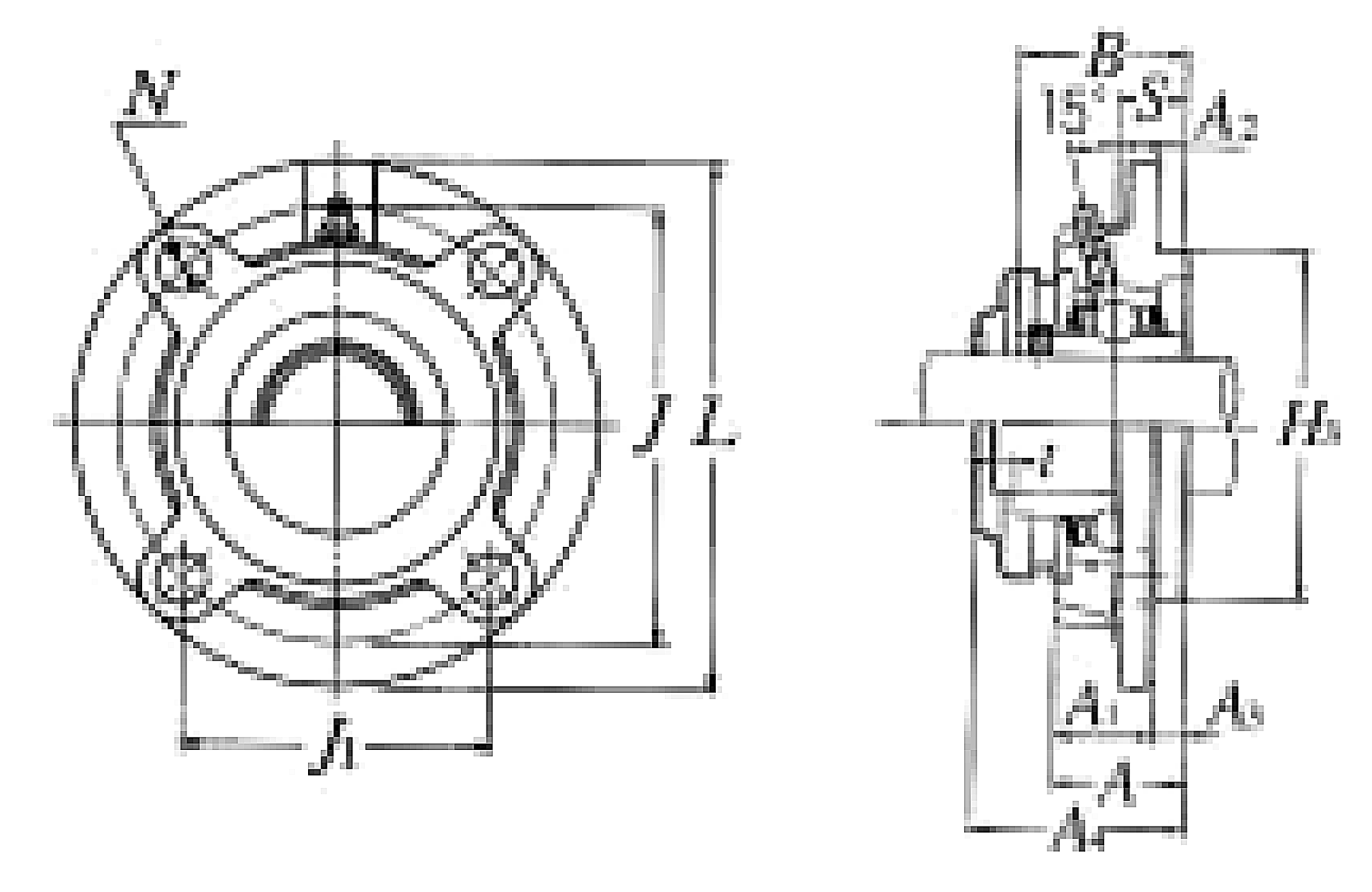

Nominal Dimensions
| d | 60 | mm | Delik çapı |
| L,H | 195 | mm | Overall length |
| H3 | 135 | mm | Outer diameter of Spigot Joint |
| J | 160 | mm | Pitch diameter of attachment bolts |
| J1 | 113.1 | mm | Distance between attachment bolts |
| N | 19 | mm | Diameter of attachment bolt hole |
| A3 | 12 | mm | Height of of Spigot Joint |
| A2 | 17 | mm | Flange width |
| A1 | 36 | mm | Flange width |
| A | 48 | mm | Base width |
| A4 | 74 | mm | Width including end cover |
| B,B1,B2 | 65.1 | mm | Width of inner ring |
| t | 4 | mm | Gümrükleme |
| S | 25.4 | mm | Distance from Opposite side face of locking device to raceway centre |
Mounting information
| G | M16 | Bolt size |
| mass | 5.1 | kg | Mass approx. |
