6028DDU

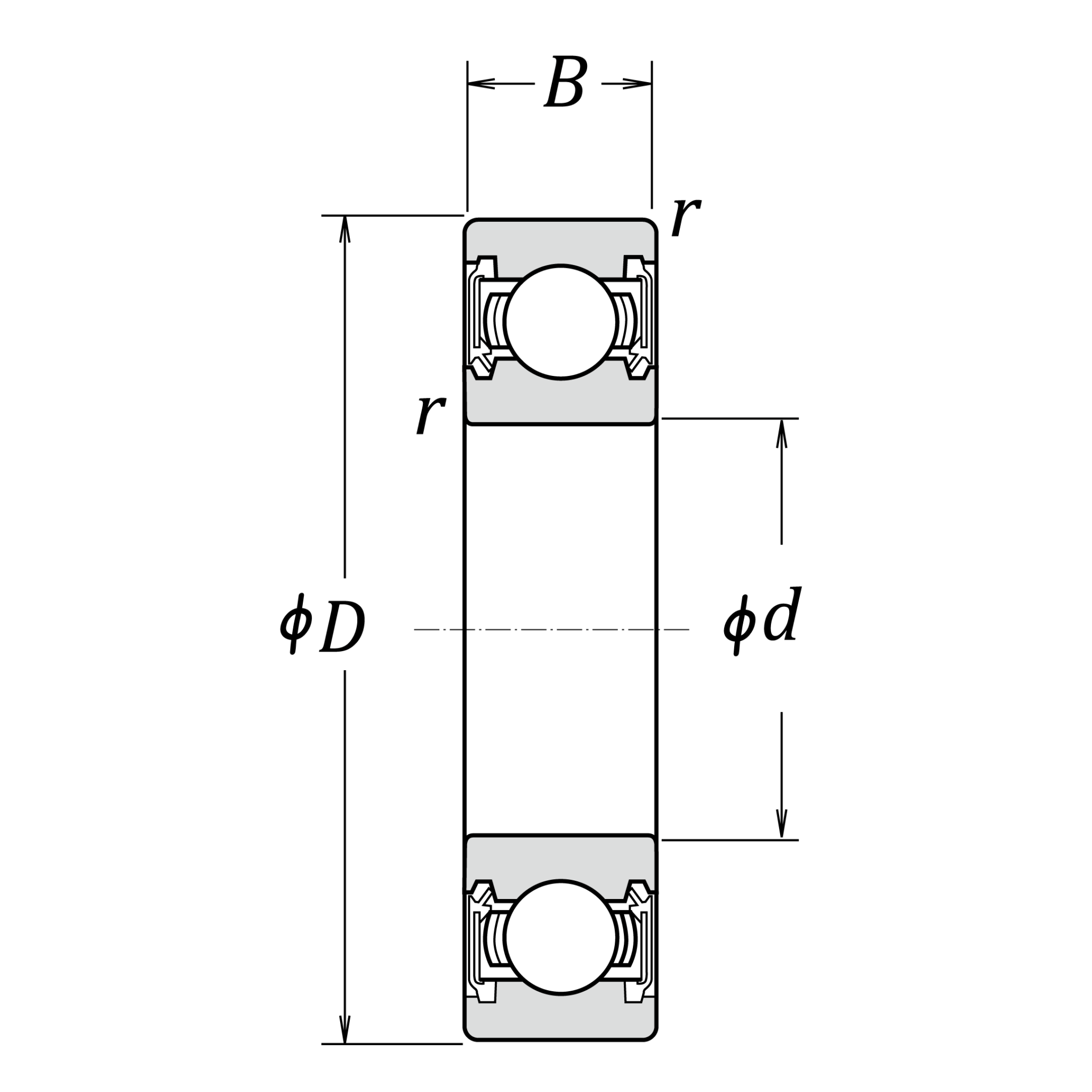

| d | 140 | mm | Bore diameter |
| D | 210 | mm | Outside diameter |
| B | 33 | mm | Width |
| r (min.) | 2 | mm | Chamfer dimension |
| Cr | 121000 | N | Basic dynamic load rating |
| C0r | 109000 | N | Basic static load rating |
| Grease | 1800 | min-1 | Grease lubrication |

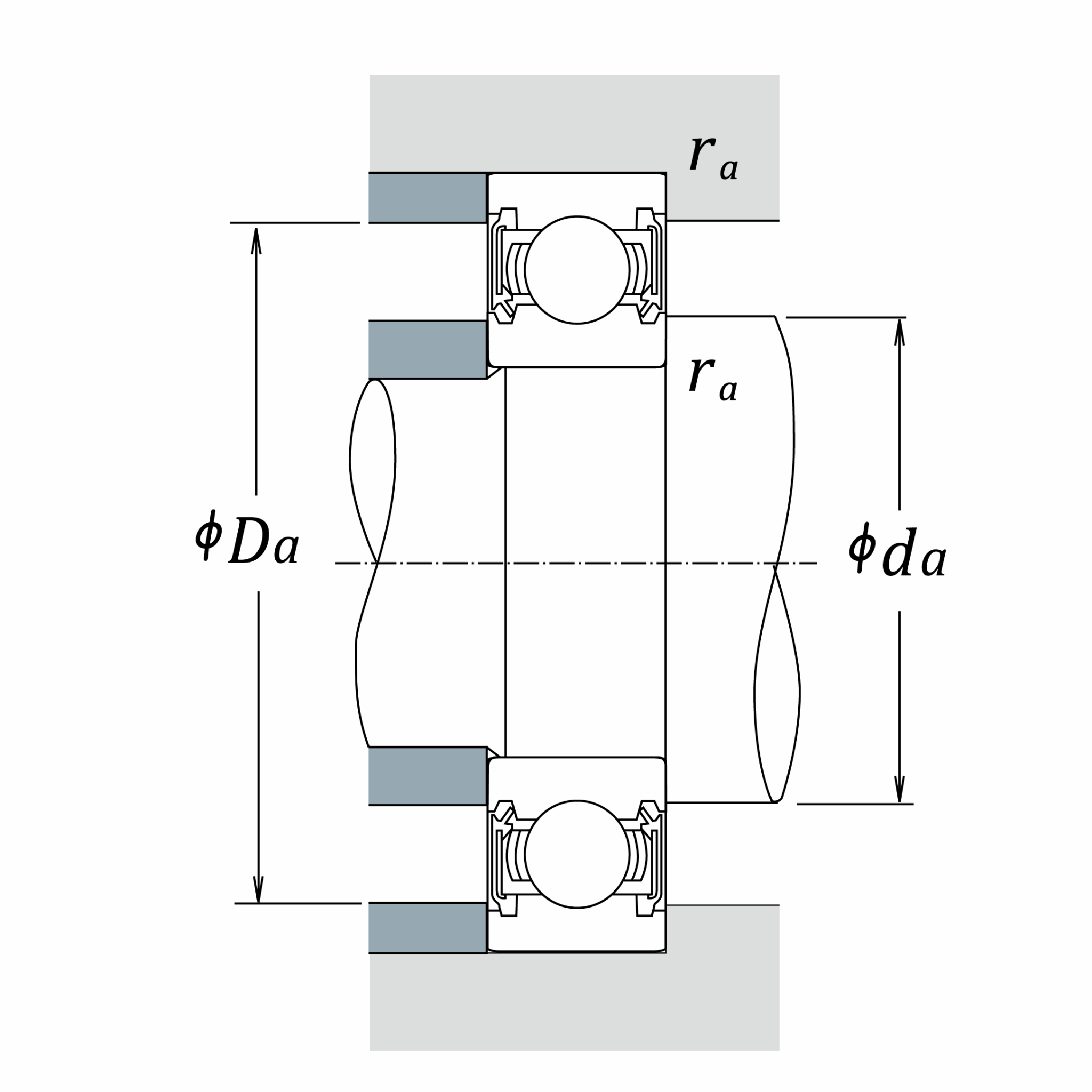

| da (min.) | 149 | mm | Diameter of shaft abutment |
| da (max.) | 158.5 | mm | Diameter of shaft abutment |
| Da (max.) | 201 | mm | Diameter of housing abutment |
| ra (max.) | 2 | mm | Radius of shaft or housing fillet |
| fo | 16 | Factor |
| (approx.) | 3.48 | kg |
