UCFH210D1
| Cr | 35 | kN | Basic dynamic load rating |
| C0r | 23.2 | kN | Basic static load rating |
Included products
| Bearing | UC210D1 | Bearing | |
| Housing | FH210D1 | Housing |

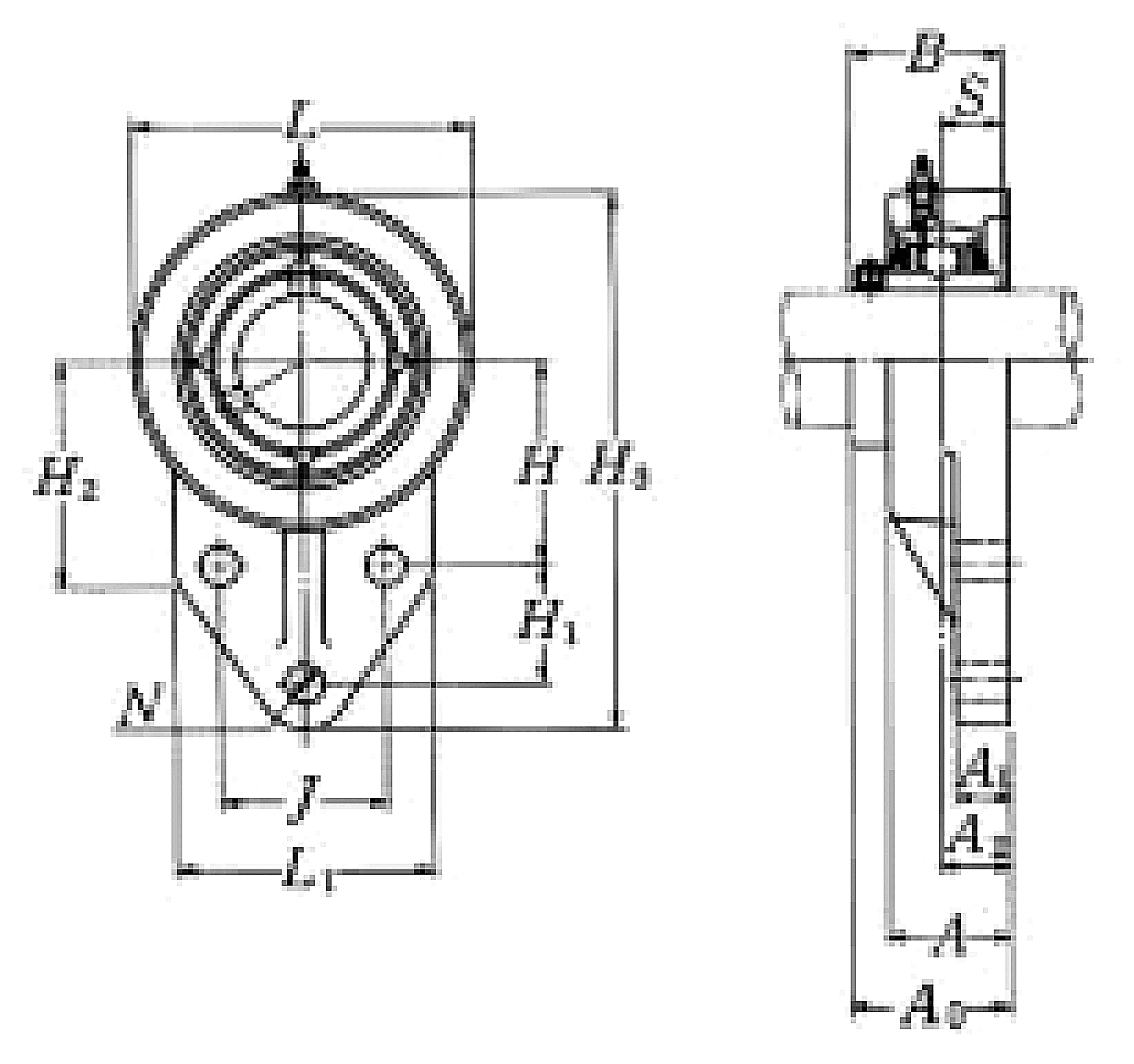

Nominal Dimensions
| d | 50 | mm | Bore diameter |
| L,L1 | 112 | mm | Overall height |
| H | 68 | mm | Height of spherical seat centre |
| H3 | 184 | mm | Overall height |
| J | 58 | mm | Distance between attachment bolts |
| N | 12 | mm | Diameter of attachment bolt hole |
| A2 | 22 | mm | Flange width |
| A1 | 18 | mm | Flange width |
| A | 40 | mm | Base width |
| A0 | 54.6 | mm | Overall width |
| B,B1,B2 | 51.6 | mm | Width of inner ring |
| H1 | 46 | mm | Distance between attachment bolt holes |
| S | 19 | mm | Distance from Opposite side face of locking device to raceway centre |
| L1 | 86 | mm | Foot width |
Mounting information
| G | M10 | Bolt size |
| mass | 2.4 | kg | Mass approx. |
