UKF313D1
| Cr | 92.5 | kN | Basic dynamic load rating |
| C0r | 60 | kN | Basic static load rating |
Included products
| Bearing | UK313D1 | Bearing | |
| Housing | F313D1 | Housing |
Associated products
| Adapter sleeve | H2313X | Adapter sleeve |

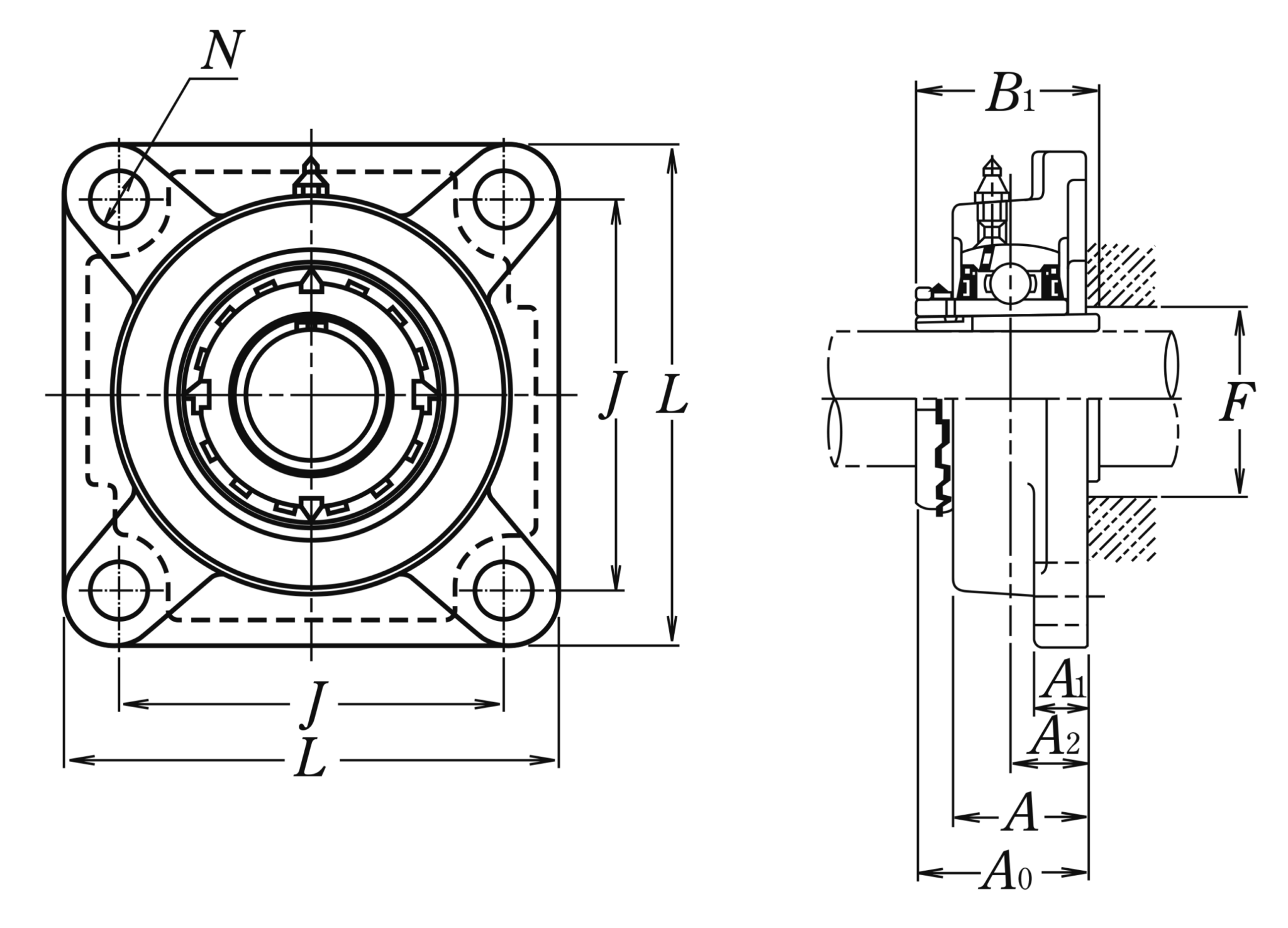

Nominal Dimensions
| d | 60 | mm | Bore diameter |
| L | 208 | mm | Overall length |
| J | 166 | mm | Distance between attachment bolts |
| N | 23 | mm | Diameter of attachment bolt hole |
| A2 | 33 | mm | Flange width |
| A1 | 22 | mm | Flange width |
| A | 58 | mm | Base width |
| A0 | 71.5 | mm | Overall width |
| B,B1,B2 | 65 | mm | Width of inner ring |
Mounting information
| G | M20 | Bolt size |
| mass | 7.8 | kg | Mass approx. |
